Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to the "CRASH PAD ")

    NOTE: Take care not to scratch the crash pad and related parts.
  3. Disconnect the connectors and remove the BCM (A) after loosening 2 bolts.

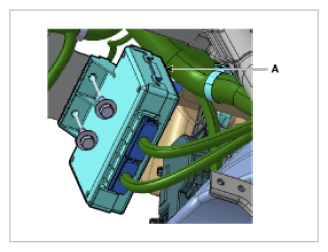

    Fig 1: Identifying BCM And Bolts
    G08803342Courtesy of HYUNDAI MOTOR AMERICA
