Repair procedures: Inspection

Disconnect the ignition switch connector (B) and key switch connector (A) from under the steering column.

Fig 1: Identifying Key Switch And Ignition Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

Fig 2: Identifying Key Switch And Ignition Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA

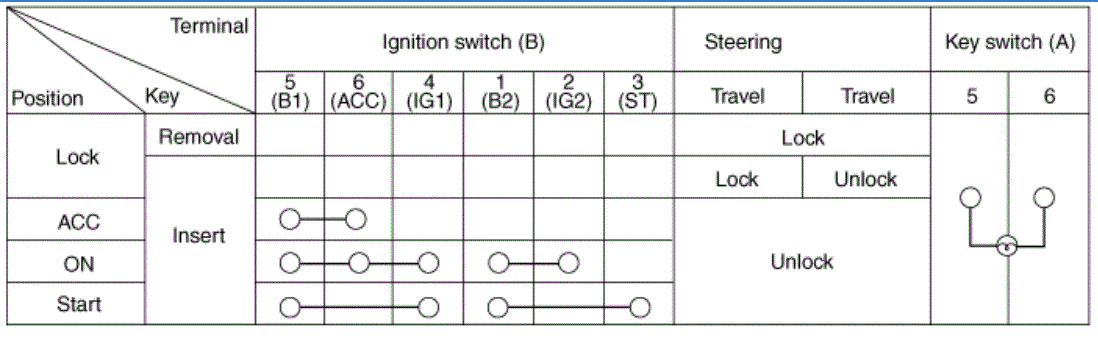

Fig 3: Key Switch And Ignition Switch Terminal Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
