Repair Procedures: Removal

  1. Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE " ).
  2. Remove the rear seat [LH] (Refer to REAR SEAT ).
  3. Remove the fuel pump service cover (A).
    Fig 1: Identifying Fuel Pump Service Cover
    G08804517Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel feed tube quick connector (B).
  6. Disconnect the fuel tank pressure sensor connector (C).
  7. Disconnect the vapor tube (D).

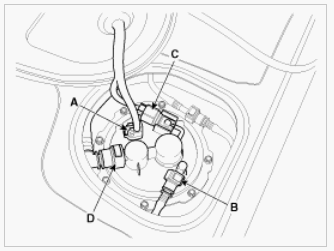

    Fig 2: Identifying Fuel Pump, Fuel Feed Tube Quick And Fuel Tank Pressure Sensor Connectors & Vapor Tube
    G08804518Courtesy of HYUNDAI MOTOR AMERICA
  8. Lift the vehicle and support the fuel tank with a jack.
  9. Remove the center muffler assembly (Refer to MUFFLER ).
  10. Disconnect the fuel filler hose (A) and the vapor hose (B).
    Fig 3: Identifying Fuel Filler And Vapor Hose
    G08804519Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the parking brake line installation bolt (A).
    Fig 4: Identifying Parking Brake Line Installation Bolt
    G08804520Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the fuel tank from the vehicle after removing the fuel tank bands (A).

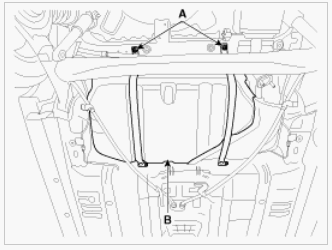

    Fig 5: Identifying Fuel Tank Bands
    G08804521Courtesy of HYUNDAI MOTOR AMERICA
