Components And Components Location: Components

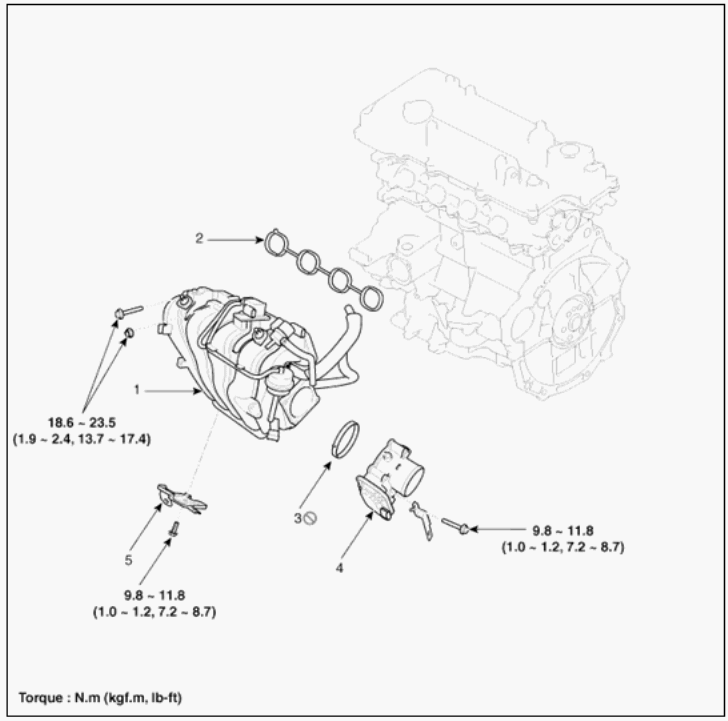

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G08804174Courtesy of HYUNDAI MOTOR AMERICA
1. Intake manifold 4. Electronic throttle body
2. Intake manifold gasket 5. Bracket
3. Electronic throttle body gasket
