System Overview Diagram

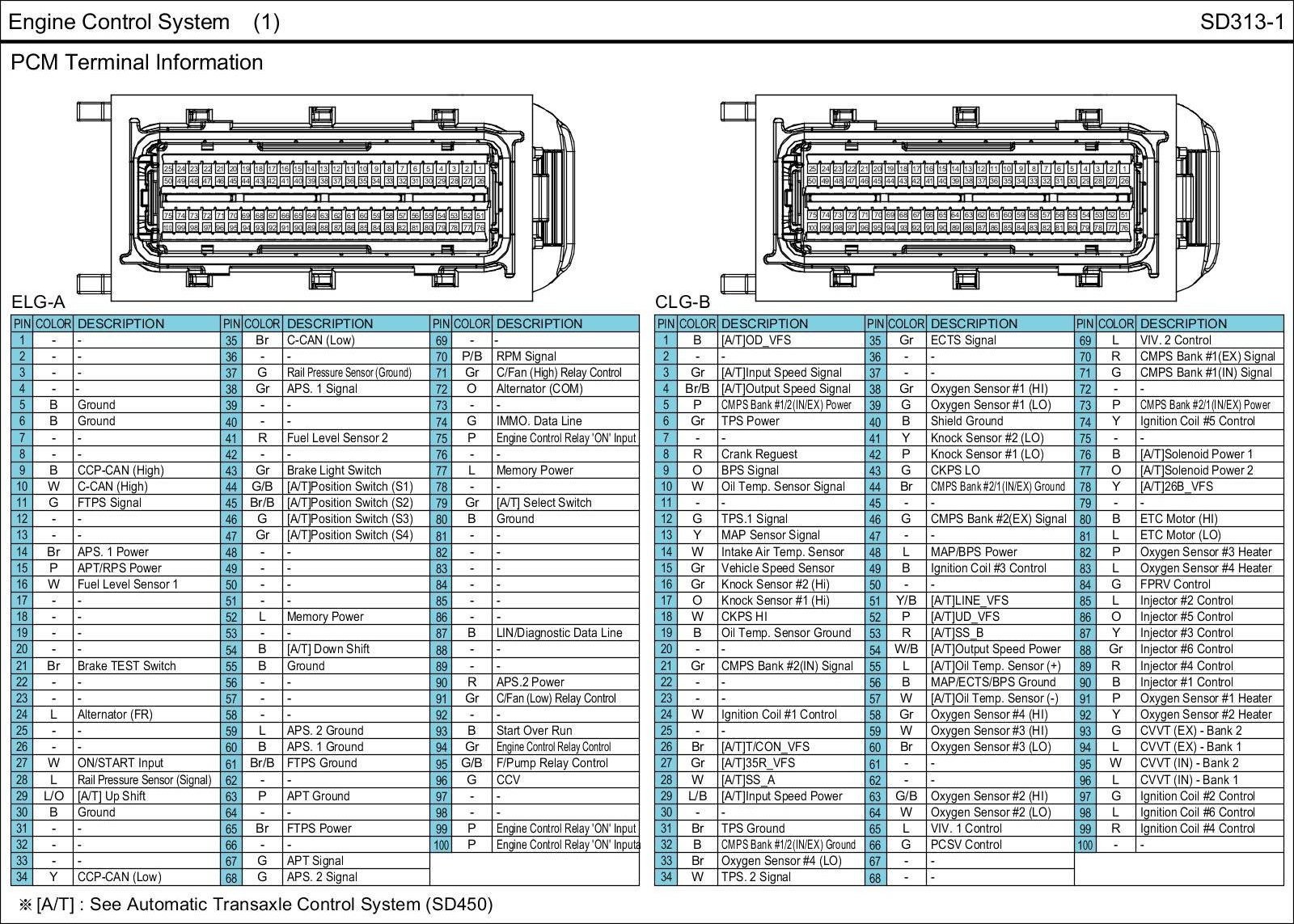

PCM Terminal Information:

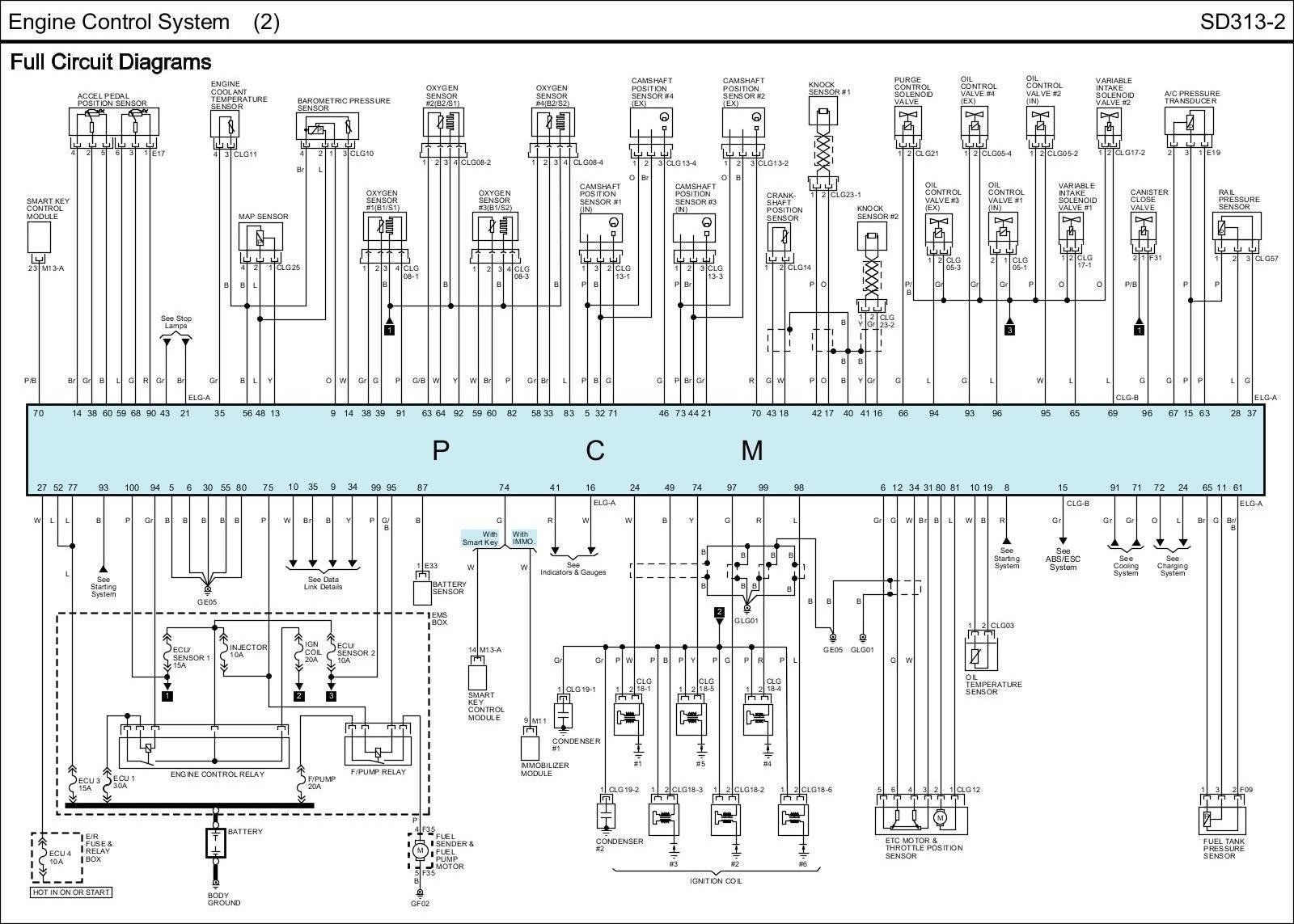

Full Circuit Diagrams:

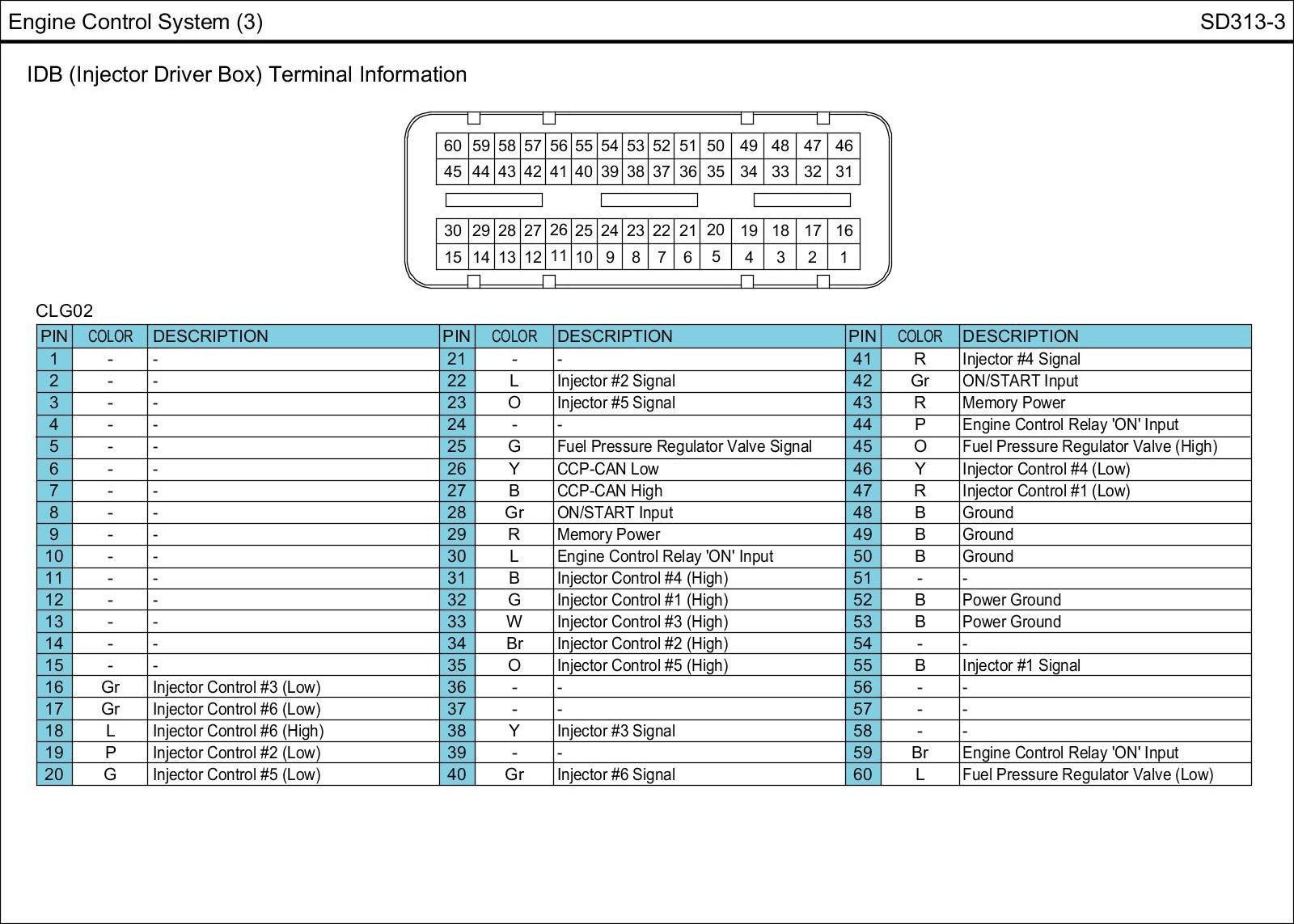

IDB (Injector Driver Box) Terminal Information:

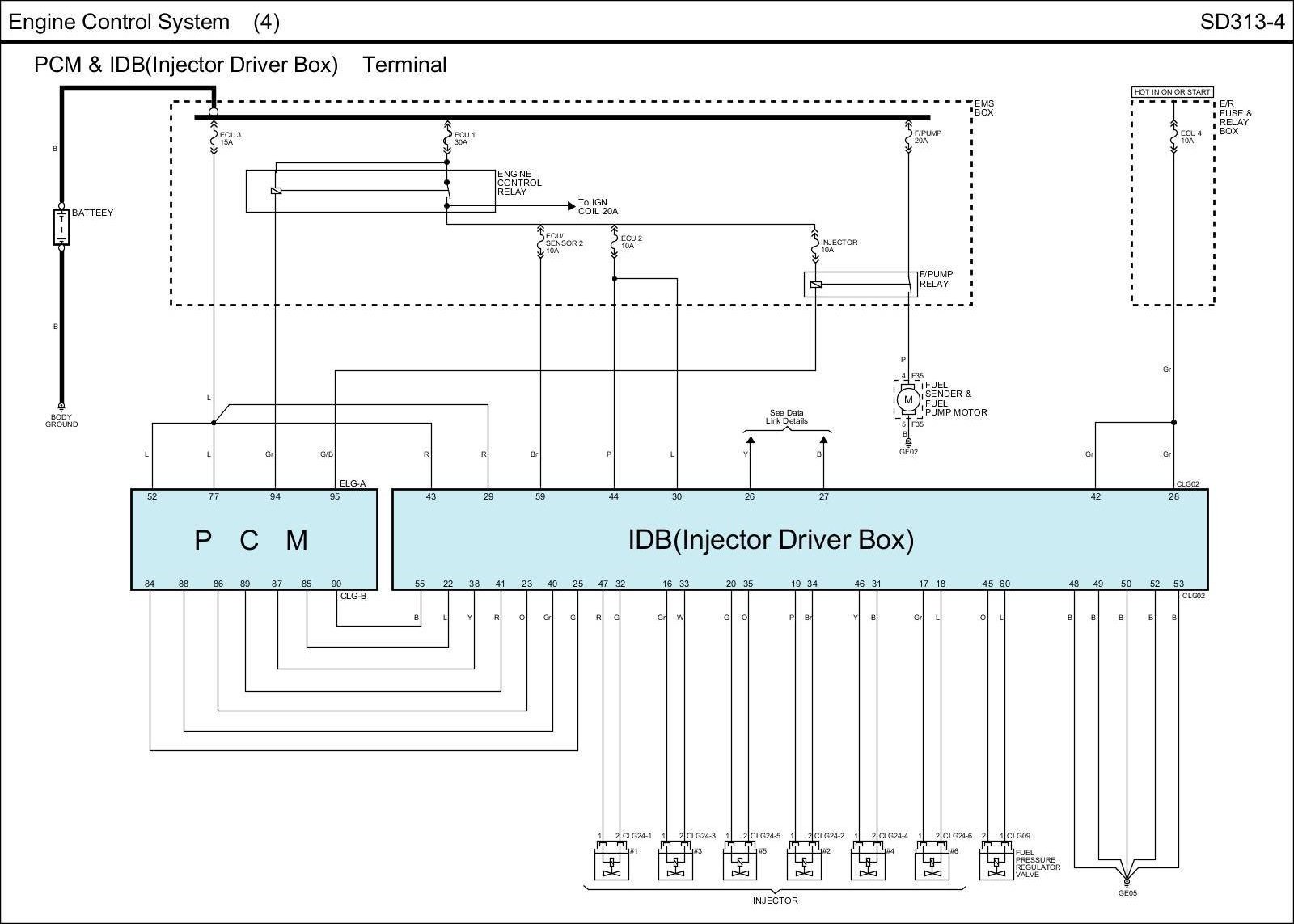

PCM & IDB (Injector Driver Box) Terminal:
