Front Body C

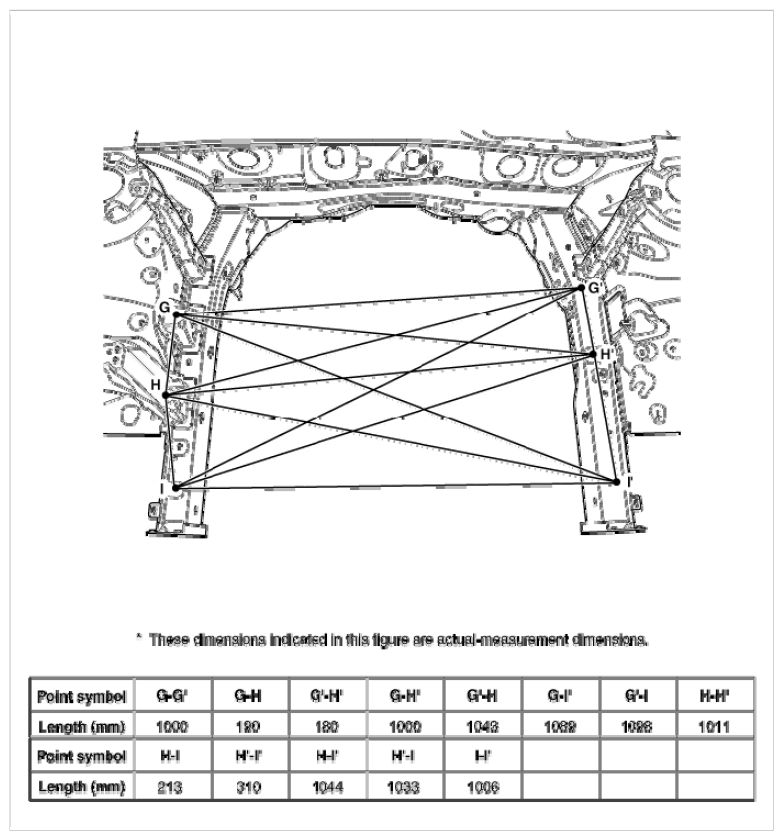

Fig 1: Identifying Front Body C Dimensions
G08810497Courtesy of HYUNDAI MOTOR AMERICA

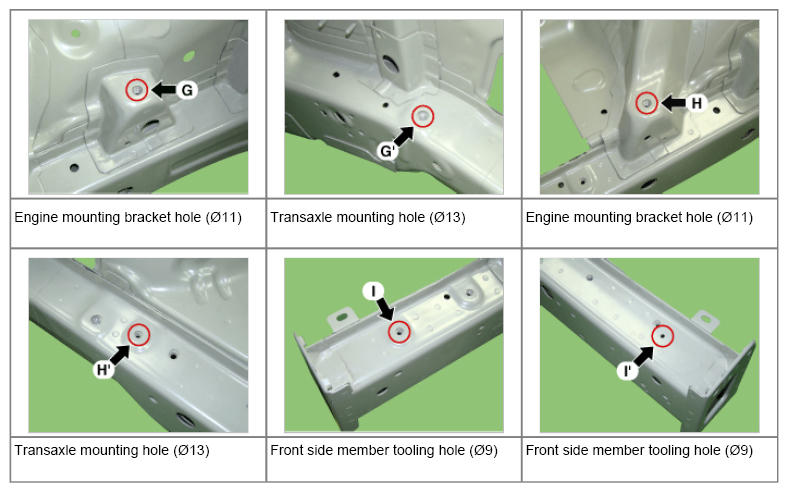

Fig 2: Locating Mounting Holes On Front Body C
G08810498Courtesy of HYUNDAI MOTOR AMERICA
