Interior C

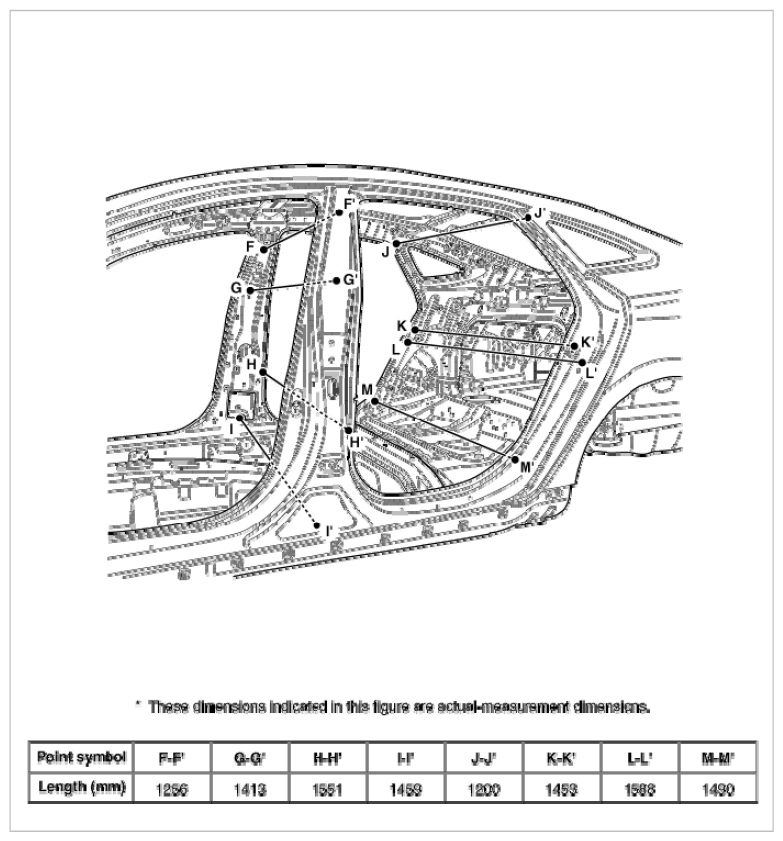

Fig 1: Identifying Interior C Dimensions
G08810507Courtesy of HYUNDAI MOTOR AMERICA

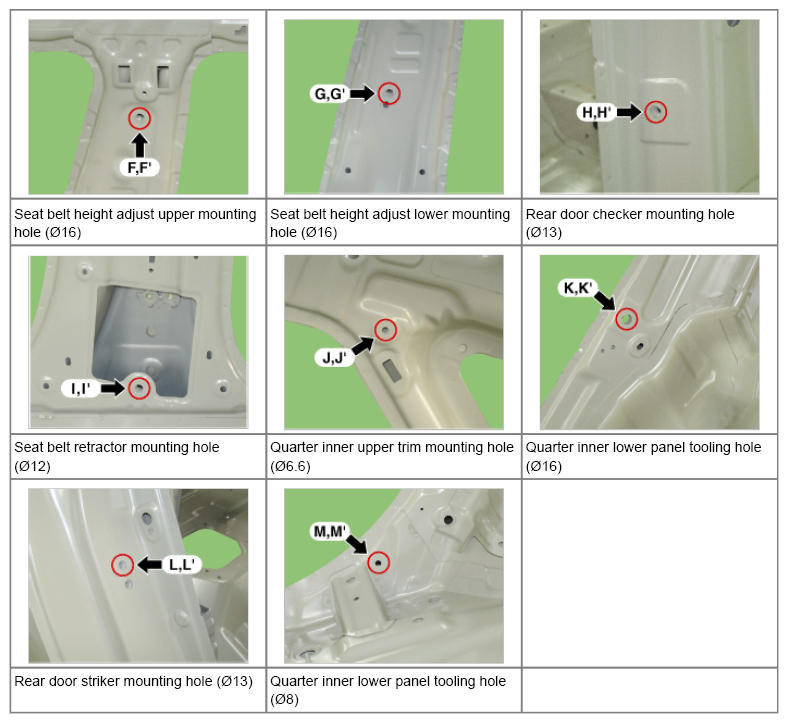

Fig 2: Locating Mounting Holes On Interior C
G08810508Courtesy of HYUNDAI MOTOR AMERICA
