Passenger Power Window Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Passenger Power Window Switch

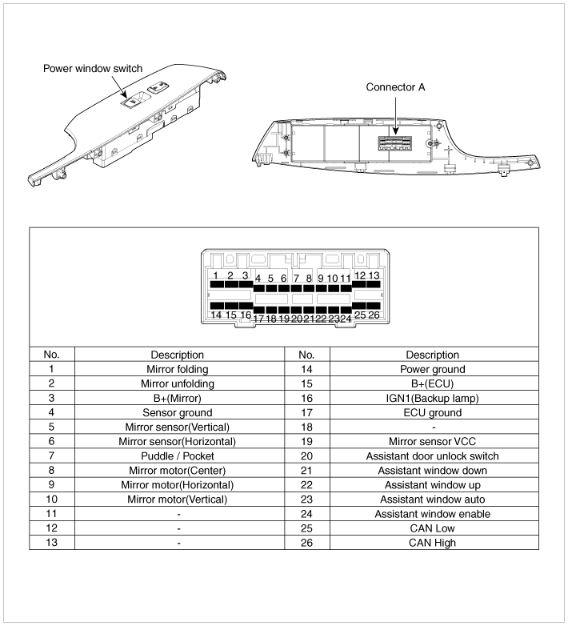

Fig 1: Passenger Power Window Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
