Components (2)

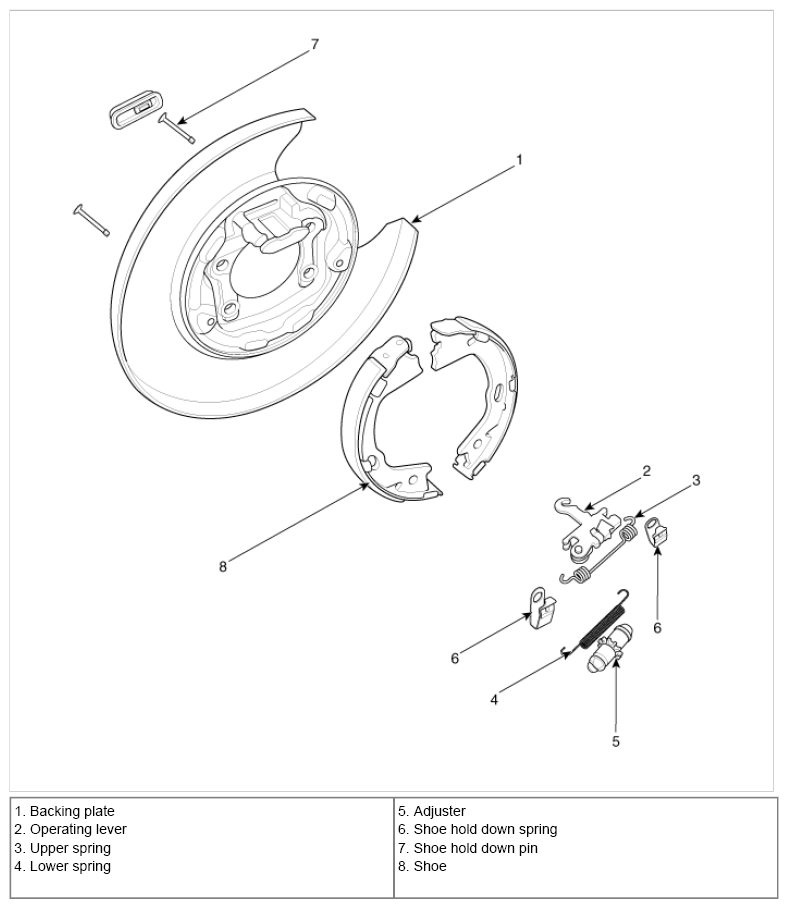

Fig 1: Parking Brake System Components Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
