Components and Components Location: Components: [LH]

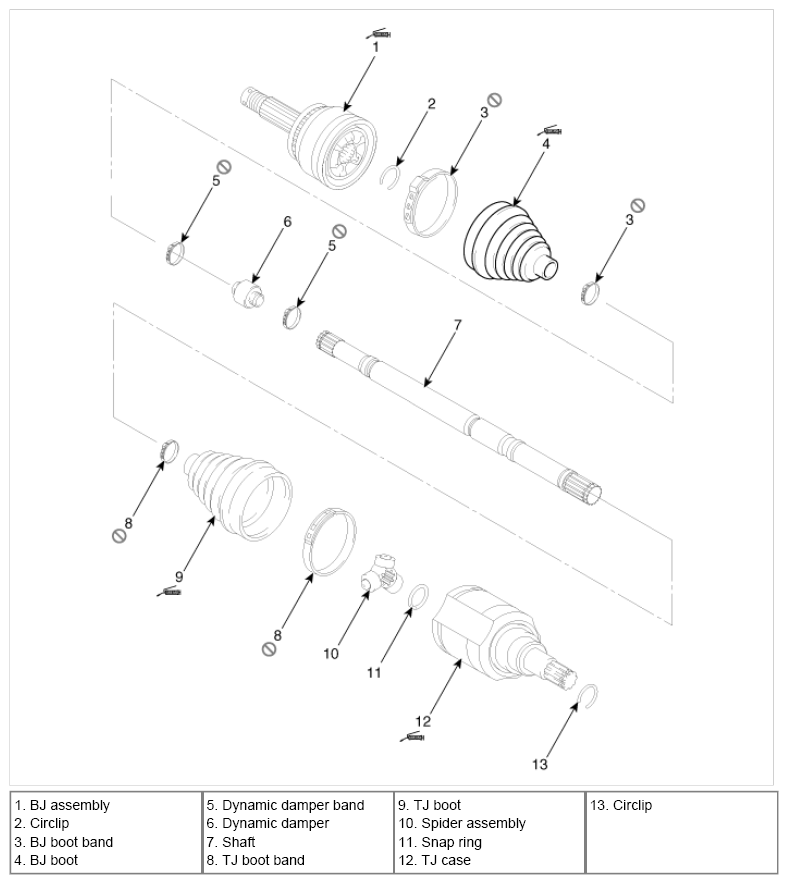

Fig 1: Identifying BJ Boot Components (LH)
G08810047Courtesy of HYUNDAI MOTOR AMERICA
