Components Location

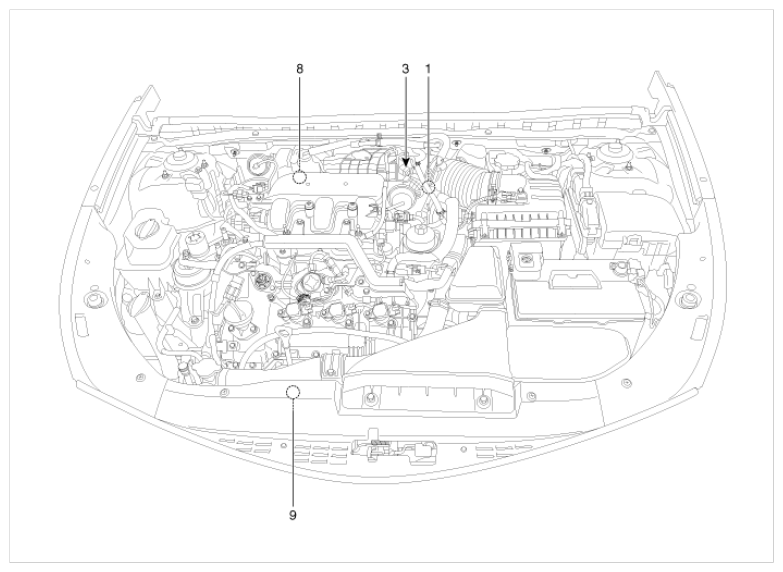

Fig 1: Emission Control System Components Location (1 Of 3)
G08809565Courtesy of HYUNDAI MOTOR AMERICA

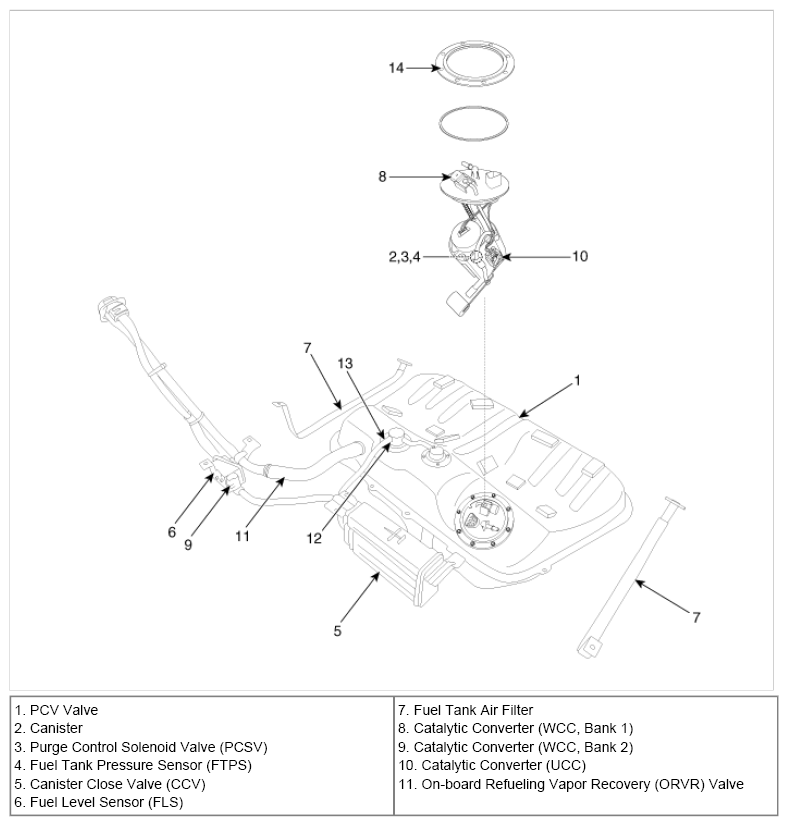

Fig 2: Emission Control System Components Location (2 Of 3)
G08809566Courtesy of HYUNDAI MOTOR AMERICA

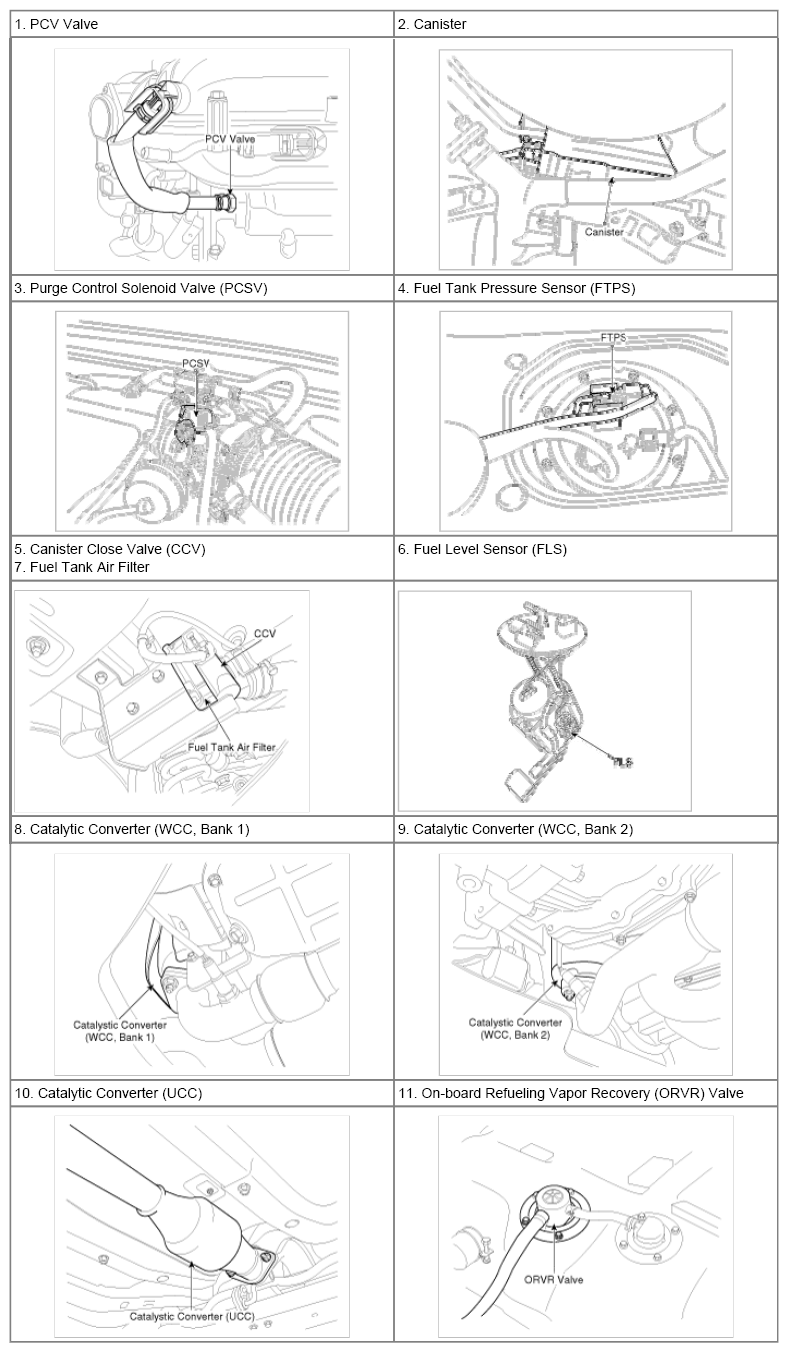

Fig 3: Emission Control System Components Location (3 Of 3)
G08809567Courtesy of HYUNDAI MOTOR AMERICA
