Schematic Diagram

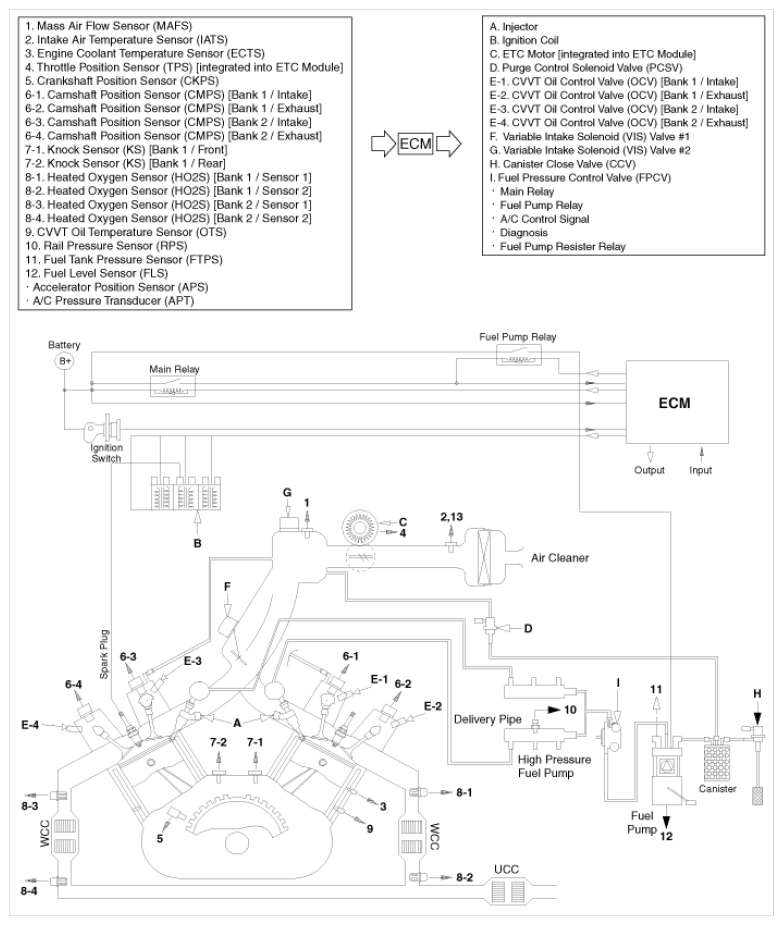

Fig 1: Emission Control System Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
