Components and Components Location: Components: [Remy]

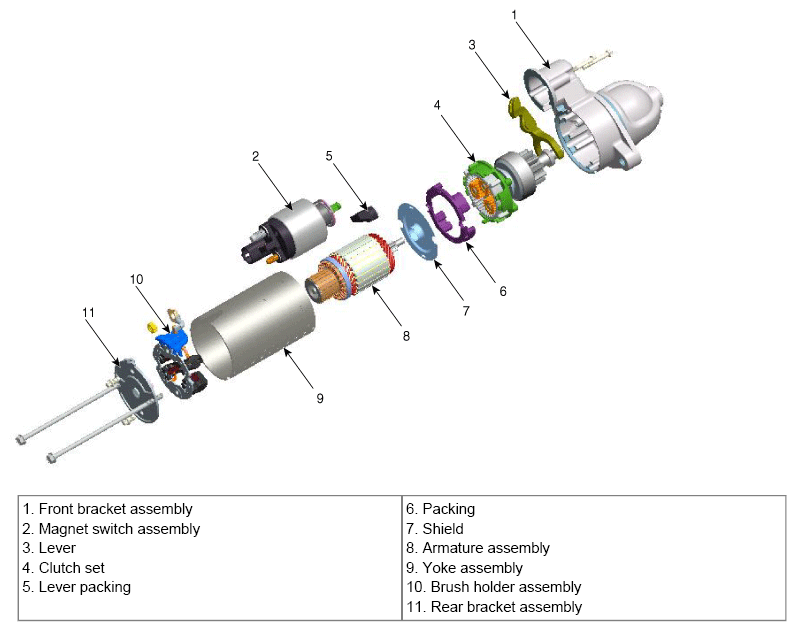

Fig 1: Identifying Starter Components (Remy)
G07256335Courtesy of HYUNDAI MOTOR CO.
