Power and Ground Distribution: Service and Repair

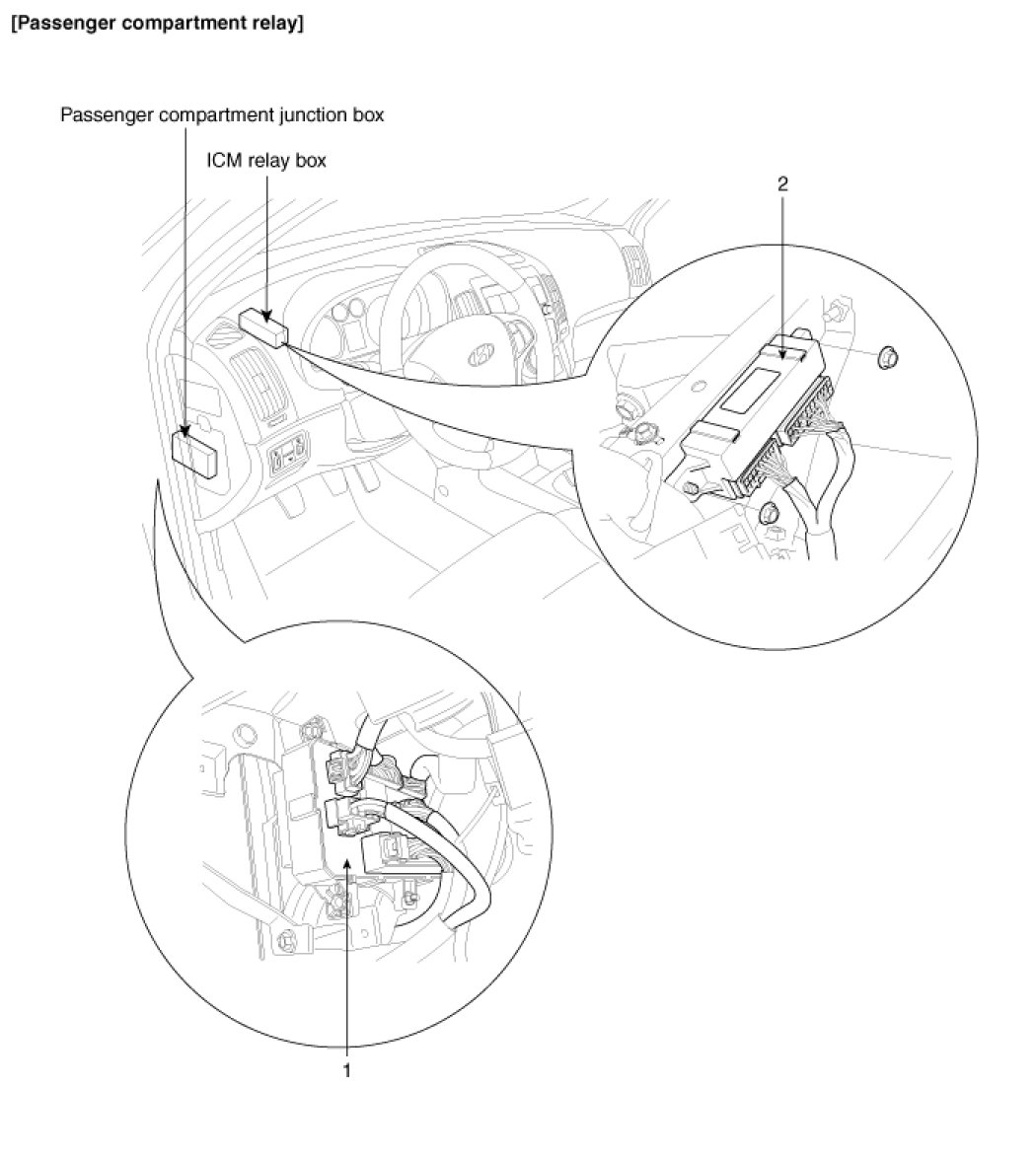

Component Location













1. Tail lamp relay, Power window relay, Rear heater relay, Trunk lid relay (Built-in-Junction box)
2. Door unlock relay, Door lock relay, Front deicer relay, Burglar alarm horn relay, Burglar alarm relay, Hazard relay (Built-in-ICM relay Box)
