Warning Function Control

The Warning function includes the sub functions.

• Buzzer Warning
• Indicator Warning
• External Buzzer Warning for smart key function
• Smart key Lamp Warning
• ESCL System Indicator Warning
• Trunk open close flashing warning

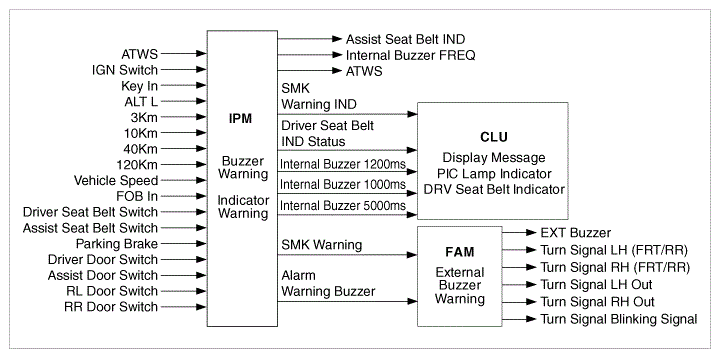

  Fig 1: Warning Function Control - System Diagram

  Courtesy of HYUNDAI MOTOR AMERICA

The Buzzer warning control includes the features.

• Seat belt warning for driver side and assist side.
• Overspeed warning in case of more than 120km/h for some of the Middle East countries.
• Key operated warning in case of key inserted and drive door open.
• IPM Internal buzzer priority: 1st has the highest priority.

• 1st: Diagnostic sound (provided to test the Buzzer by way of Diagnostic tool)
• 2nd: Seat Belt warning
• 3rd: Overspeed warning
• 4th: Key operated warning
• 5th: Parking Brake warning
• 6th: "ESCL not blocked" warning (SMK option only)
• 7th: Vehicle not P warning (SMK option only)
• 8th: Key learning sound with High SCAN tool, non SMK option only
• 9th: Key learning sound with Code Saving tool, non SMK option only
• 10th: Warnings for SMK systems (4 warnings - SMK option only)
• 11th: EPB Alarm warning

1. Seat Belt Warning Function

   The driver side indicator in the Cluster is activated by 'Driver Seat Belt Indicator Status' CAN signal and the assistant side indicator is activated by the IPM output 'Assist Seat Belt Indicator'.

   Seat Belt Warning Sound:

   In case of Driver side 6sec Indicator, the cluster module operates it after receiving 'Driver Seat Belt Indicator Status' from the IPM. So if the IPM sends 'Driver Seat Belt Indicator Status = blinking' over 6sec then the IPM sounds buzzer warning one more time.

   Frequency: 800 Hz

   Sound period: T2 = 1sec

   Sound duration: T1 = 6sec

   Assistant Seat Belt Indicator:

   Duty: 50%

   Period: T2 = 1sec

   Duration: T1 = 6sec

   Fig 2: Assistant Seat Belt Indicator Blinking Pattern

   Courtesy of HYUNDAI MOTOR AMERICA

   Driver Seat Belt IND and Buzzer Sound Logic Condition

   1. While IGN1 On status if IPM detects Seat Belt transition UNFASTEN → FASTEN, BUZZER SOUND stops immediately but DRIVER SEAT BELT IND continues working for the remained time.
   2. While IGN1 ON status if there is a Seat Belt transition FASTEN → UNFASTEN, DRIVER SEAT BELT IND and BUZZER SOUND are always activated for one period.
   3. If IGN1 is turned OFF during SEAT BELT WARNING, the DRIVER SEAT BELT IND and BUZZER SOUND stops immediately.
   4. If IPM detects IGN ON signal regardless of Seat Belt status, DRIVER SEAT BELT IND should be triggered for defined timing for IND check but Buzzer SOUND should be played only in case of unfastened Seat Belt.
   NOTE:

   • Seat belt warning buzzer sound is optional while driver seat belt warning indicator is always present in all software variant.
   • The in-circuited magnetic buzzer sound is used for seat belt warning.
   Fig 3: Seat Belt Warning Buzzer Blinking Pattern

   Courtesy of HYUNDAI MOTOR AMERICA
2. Key Operated Warning
   1. Condition: (Key IN = ON or ACC=ON or FOB IN=ON) and (IGN1 IPM=OFF, IGN2 IPM=OFF, ALT L=OFF)
   2. Input: Driver door switch = Open
   3. Output: Buzzer = On
3. Parking Brake Warning
   1. Condition: (IGN1 = ON) and (10km/h = vehicle speed)
   2. Input: Parking Brake = On
   3. Output: Buzzer = On
4. Key Learning Sound

   When each Key's learning is ended, magnetic buzzer is operated, every one time.

5. Key Battery Discharge Warning
   1. If the terminal state changed from IGN or Engine Running to OFF with Fob absence in fob holder, then the IPM generates this warning.
   2. "Steering Column Not Locked Warning" warning sound.
6. Steering Column Not Locked Warning

   If all terminals are Off and the ESCL is not locked while the last command was a block command, the IPM generates this warning.

7. Steering Column IS Not UNLocked Warning

   After SSB (Start Stop Button) press, If the steering lock is not unlocked due to any failure except ESCL failure, then the IPM generates a corresponding warning.

8. Vehicle Not P Warning

   When gear is not P position and Vehicle speed is less than 5km/h (VS<5kmh), if IPM internal status change from IGN or Engine Running to ACC, then the IPM generates a corresponding warning.

9. SMK System Buzzer Warning

   Warning sounds are necessary for the SMK (smartkey) system in the following cases:

   FOB IN means FOB is inserted in FOB holder.

   1. ID out warning

      While the valid Fob is not inside car, if all doors are closed at IGN or ACC state, the buzzer warning (external and internal) sound is activated for 3sec.

      Fig 4: SMK System Buzzer Blinking Pattern

      Courtesy of HYUNDAI MOTOR AMERICA
   2. Door Lock warning 1

      While the valid Fob is founded near by outside handle and all doors are closed at ACC or IGN state without Fob IN, the buzzer warning (external) sound is activated for 3sec.

      The "Door lock warning1" sound stops, when the activity timer elapsed or (ACC=OFF) or NOT (ALL DOORS CLOSED) or (FOB IN).

   3. Door Lock warning 2

      While the valid Fob is founded near by outside handle and any door open at terminal OFF state without Fob IN, the buzzer warning (external) sound is activated for 3sec.

      The "Door lock warning2" sound stops, when the activity timer elapsed or ACC=ON or IGN1 = ON or ALL DOOR CLOSED or FOB IN.

   4. Door Lock warning 3

      While the valid Fob is inside car and all doors are closed at terminal OFF state without FOB in, the buzzer warning (external) sound is activated for 3sec.

      The "Door lock warning3" sound stops, when the activity timer elapsed or ACC=ON or IGN1 = ON or NOT (ALL DOOR CLOSED) or FOB IN.

10. SMK Key Reminder Warning 2 (SMK Option Only)

    Any door opens at terminal OFF state without FOB in. After transition to all door closed within 500msec, if the valid Fob is in side car and all door locked then IPM transmits SMK key reminder warning 2 command (SMK Warning

11. SMK System Lamp Warning (SMK Option Only)

    While the valid Fob is not inside car and 3Km/h is not set (3km = Off) at Fob In = Off, ACC = On or IGN1 IPM = On then send SMK Warning IND = SMK Lamp Waring.

12. SMK System Trunk Warning (SMK Option Only)

    While the valid Fob is inside trunk and the trunk open state, the IPM detects the trunk closed state then IPM transmits trunk warning command (SMK Warning).

    If a 5sec trunk re-opening warning sound is in progress and there is another trunk re-opening warning sound request before the end of the previous 5sec buzzer, the warning is re-triggered for 5 seconds.

13. Trunk Open Closing Warning

    Trunk Open Warning:

    1. The ATWS changes from ARM to ARMHOLD by TRUNK open command and detects trunk open, the IPM transmits Alarm Warning Buzzer Disarm (TwoTimes) to FAM.
    2. The ATWS changes from ARMWAIT to PREARM by TRUNK open command and detects trunk open, the IPM transmits Alarm Warning Buzzer Disarm (TwoTimes) to FAM.
    3. The IPM is in ARMHOLD and detects trunk open transition, the IPM transmits Alarm Warning Buzzer Disarm (TwoTimes) to FAM

    Trunk Closing Warning:

    1. The IPM is in ARMHOLD and detects trunk close transition, the IPM transmits
14. ESCL System Indicator Warning

    The IPM sends SMK Warning.

    IPM send SMK Warning IND to CLU (Cluster) and PDM by state sending type.

    1. Shift "P" Warning ID

       This warning appears when the SSB is pushed to stop the engine or to switch off all terminals with the A/T gear M lever in any position except the 'P' position. If this warning appears, the terminal system is remains in the [ACC] position stateinstead of the OFF position.

    2. Key Battery Discharge Warning

       This indicator appears when the Key battery is running out of power.

    3. Steering Column Not Unlock Warning

       If the steering lock is not unlocked due to the load applied to the steering wheel when pushing the SSB, the IPM generates a corresponding warning and the SSB indicator light blinks blue.

    4. Steering Column Not Locked Warning

       If all terminals are Off and the ESCL is not locked while the last command was a block command, the buzzer warning (internal) sound is activated.

    5. ESCL ECU Fail Warning

       This Indicator appears when the ESCL ECU failure is detected in the OFF state. the buzzer warning (internal) sound is activated.

    6. Engine Start Operation Indicator

       This indicator appears when the system is in the [ACC] or [IGN] state.

    7. Authentication Failed Warning

       The SSB is operated and no valid fob in interior. There are two patterns for situation; Pattern 1 is that the user presses the SSB to go to [ACC] state from [OFF]. And pattern 2 is that the user presses the SSB to start Engine in [OFF] or [ACC] or [IGN] states.

    8. FOB Key Removal Indicator

       User turns all terminals off with fob key in holder. There are two patterns for situation; Pattern 1 is that the user turns all terminals off from [IGN] state with Fob key in holder. And pattern 2 is that the user turns all terminals off from [IGN - Engine] with Fob key in holder.
