Wiper Function Control

Inform wiper module current operation mode to Rain Sensor and transfer Rain sensor command to ECW via CAN network. The Wiper Control FAM manages the Rain sensor communication.

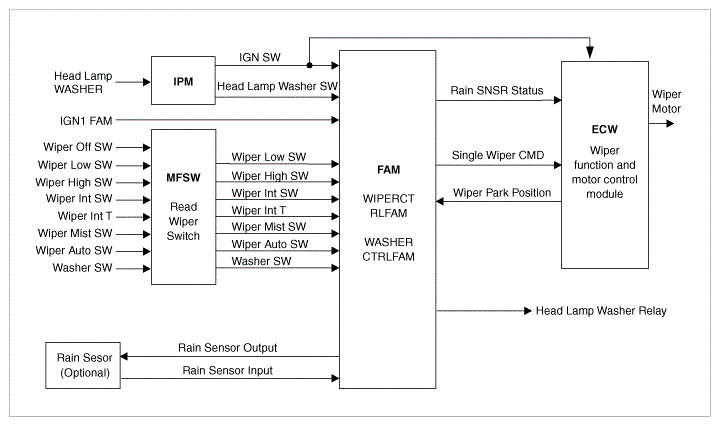

Fig 1: Wiper Function Control - System Diagram
G08831379Courtesy of HYUNDAI MOTOR AMERICA
