Smart Cruise Control Module Connector End View (E90)

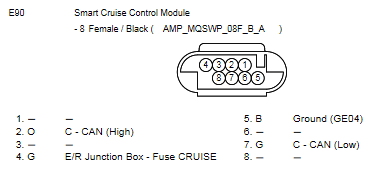

Fig 1: Smart Cruise Control Module Connector End View (E90)
G10733419Courtesy of HYUNDAI MOTOR AMERICA
