Components Location

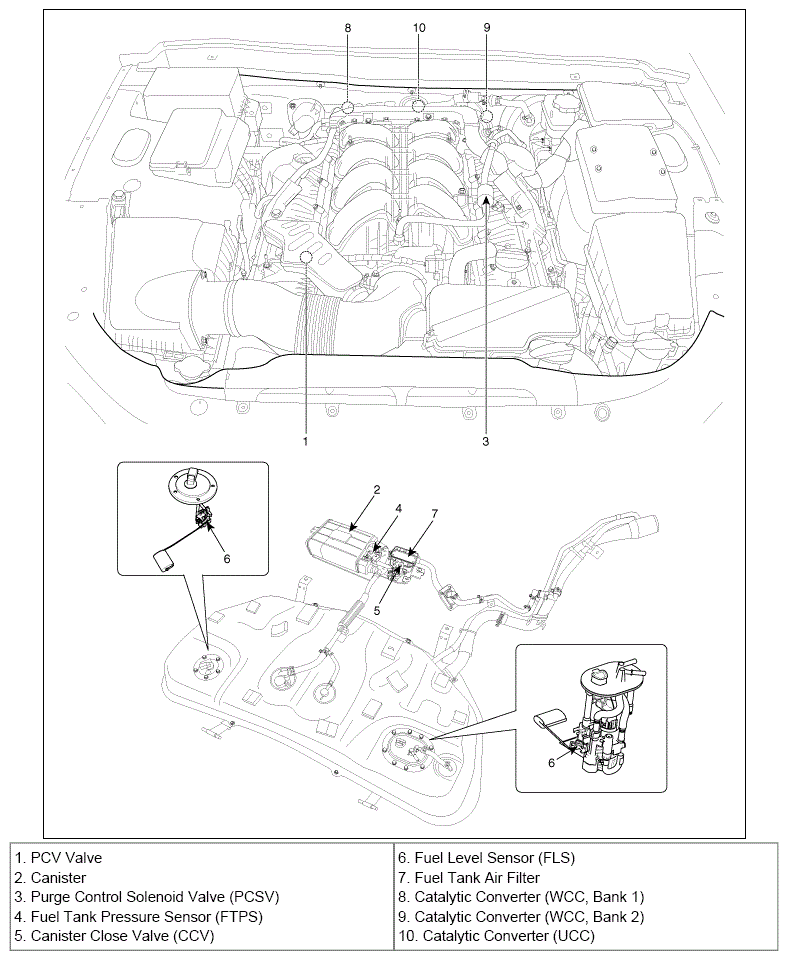

Fig 1: Identifying Emission Control System And Related Components (1 Of 2)
G08830133Courtesy of HYUNDAI MOTOR AMERICA

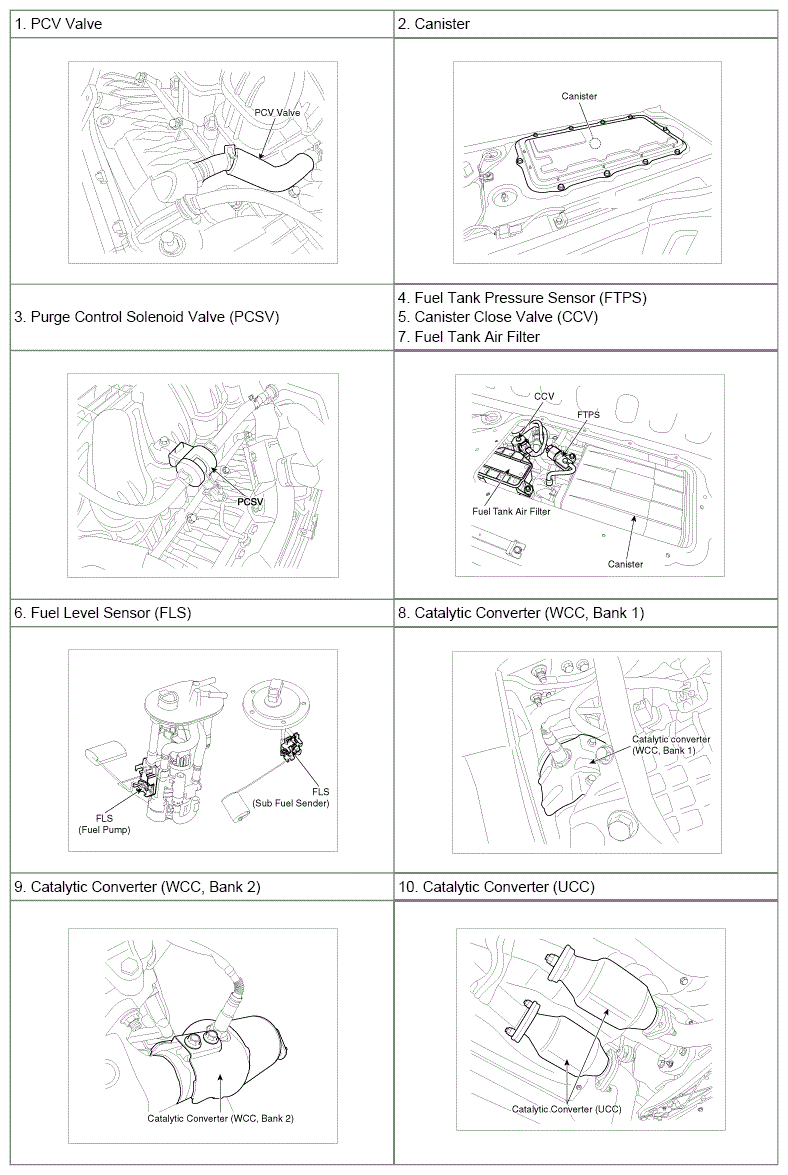

Fig 2: Identifying Emission Control System And Related Components (2 Of 2)
G08830134Courtesy of HYUNDAI MOTOR AMERICA
