FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

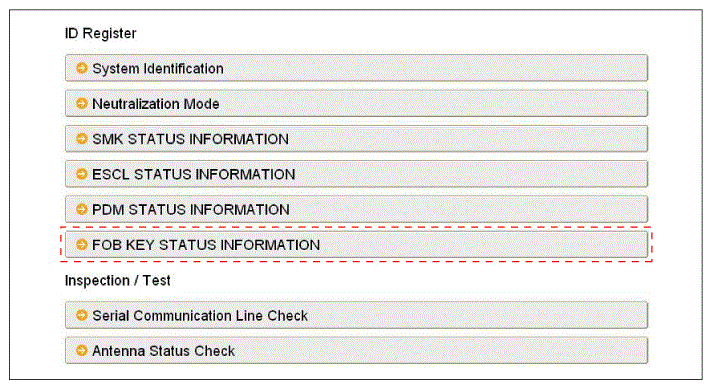

    Fig 1: Display - FOB Key Status Information ID Register
    G08831258Courtesy of HYUNDAI MOTOR AMERICA

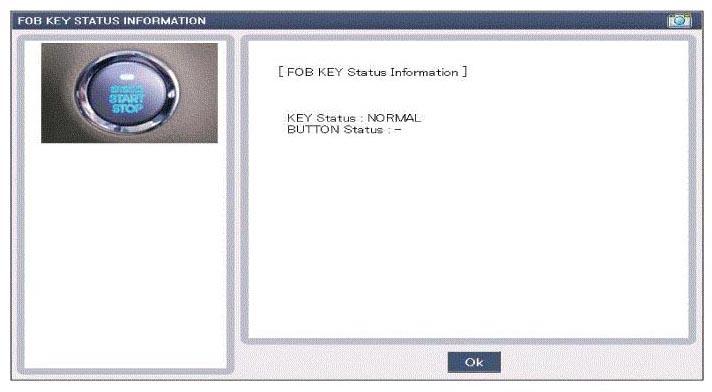

    Fig 2: Display - FOB Key Status Information
    G08831259Courtesy of HYUNDAI MOTOR AMERICA
