Components and Components Location: Components

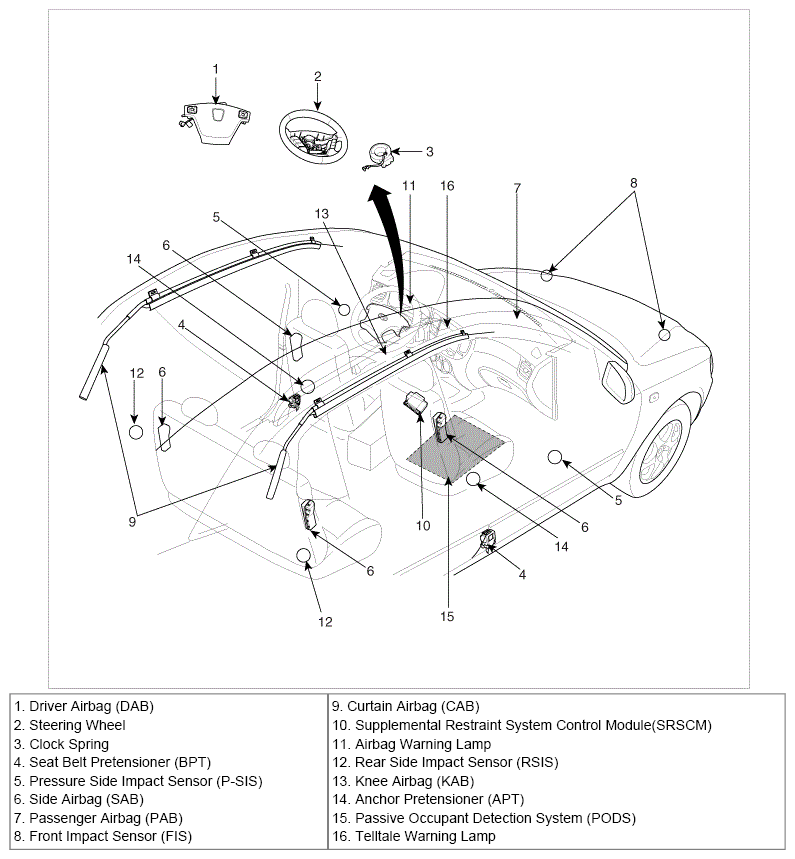

Fig 1: Identifying Restraint System Components
G08830779Courtesy of HYUNDAI MOTOR AMERICA
