Components and Components Location: Components

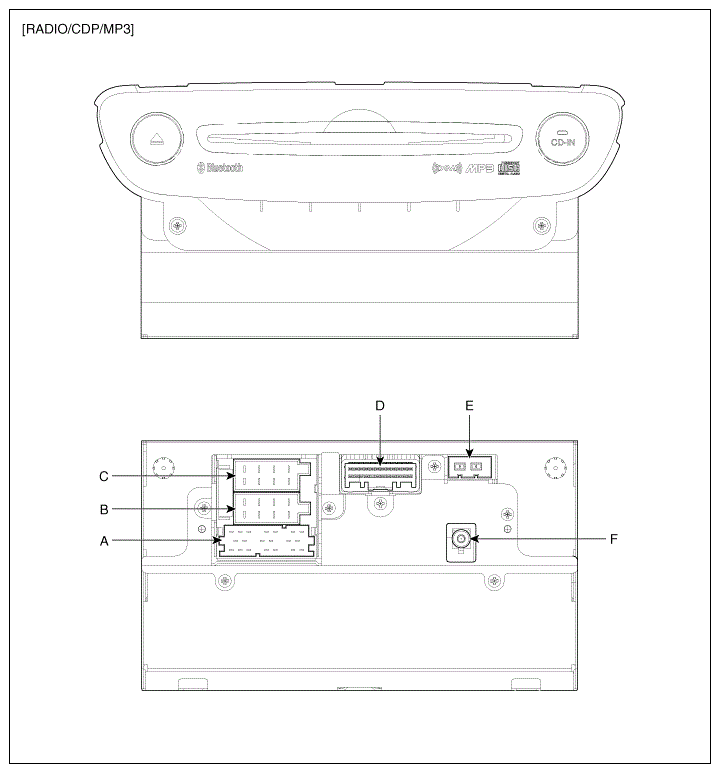

Fig 1: Identifying Audio Unit Components (Radio/CDP/MP3)
G08853180Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Identifying Audio Unit Connector Terminals (Radio/CDP/MP3)
G08853181Courtesy of HYUNDAI MOTOR AMERICA

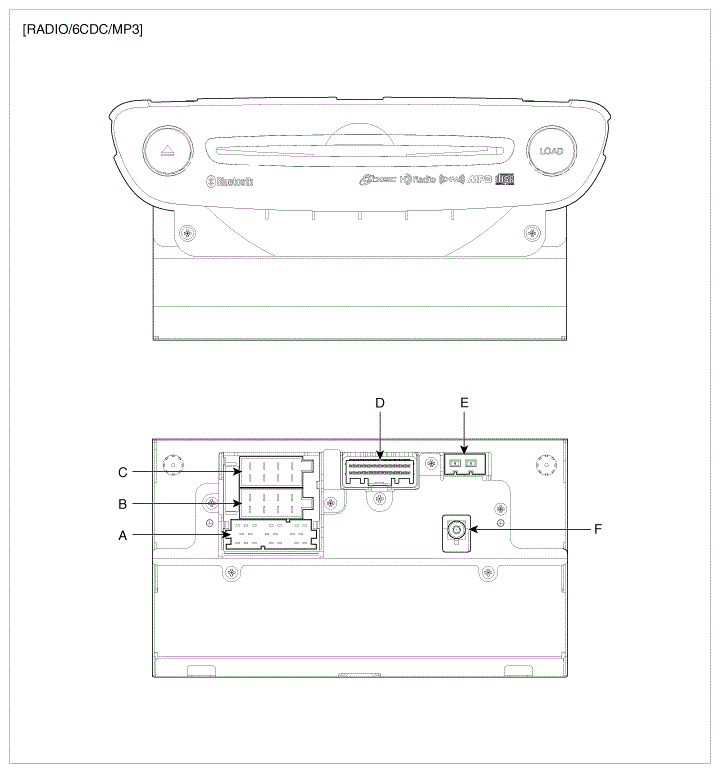

Fig 3: Identifying Audio Unit Components (Radio/6CDC/MP3)
G08853182Courtesy of HYUNDAI MOTOR AMERICA

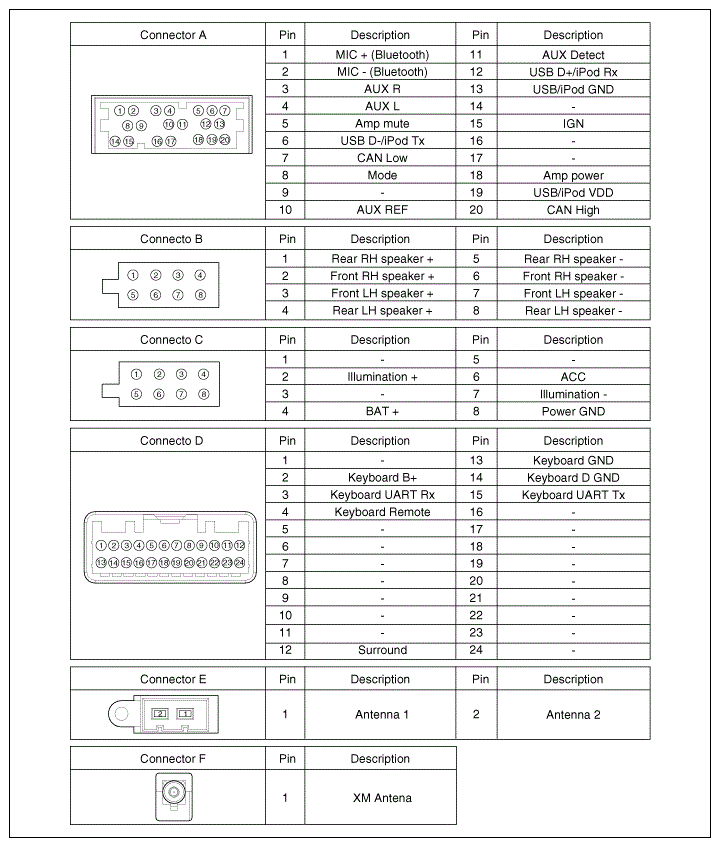

Fig 4: Identifying Audio Unit Connector Terminals (Radio/6CDC/MP3)
G08853183Courtesy of HYUNDAI MOTOR AMERICA

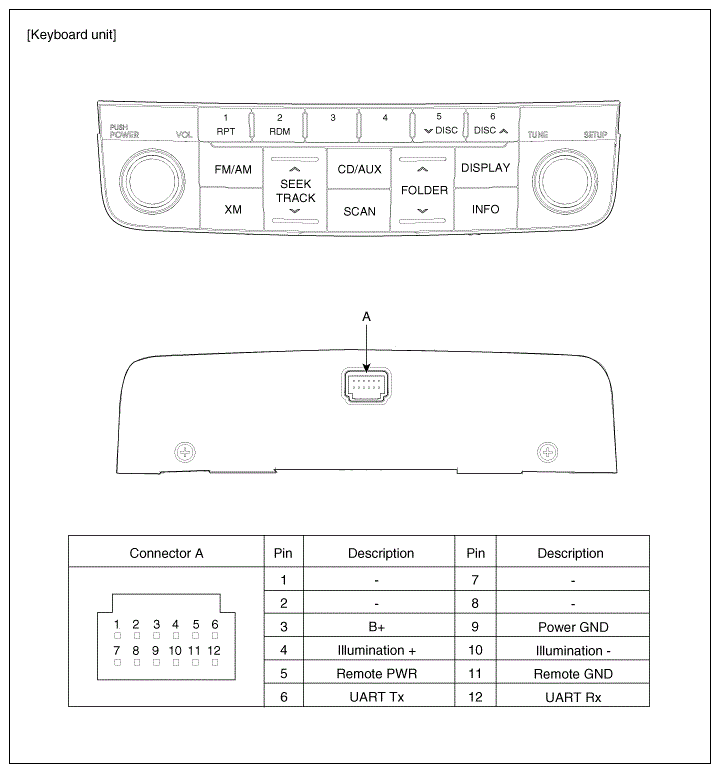

Fig 5: Identifying Keyboard Unit Connector Terminals
G08853184Courtesy of HYUNDAI MOTOR AMERICA

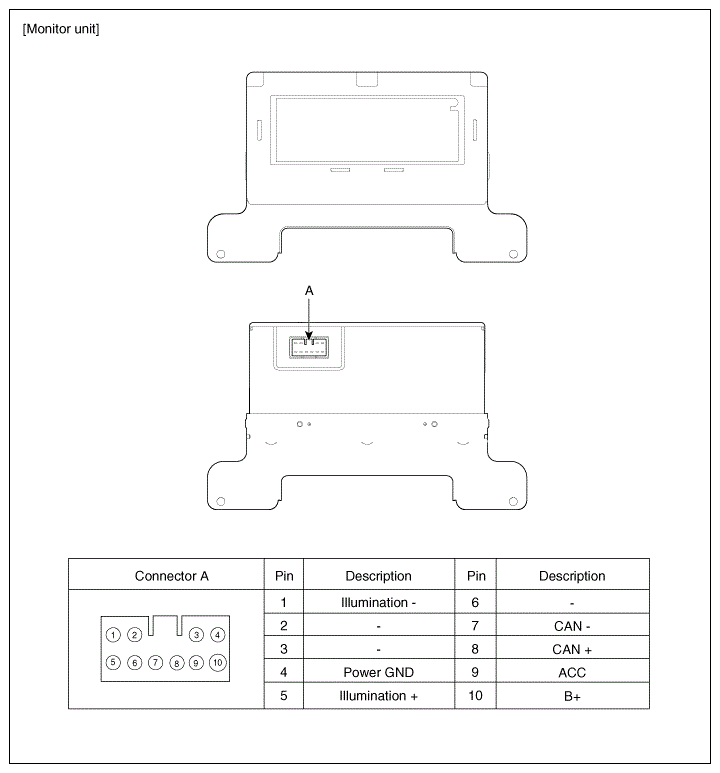

Fig 6: Identifying Monitor Unit Connector Terminals
G08853185Courtesy of HYUNDAI MOTOR AMERICA
