Components and Components Location: Components

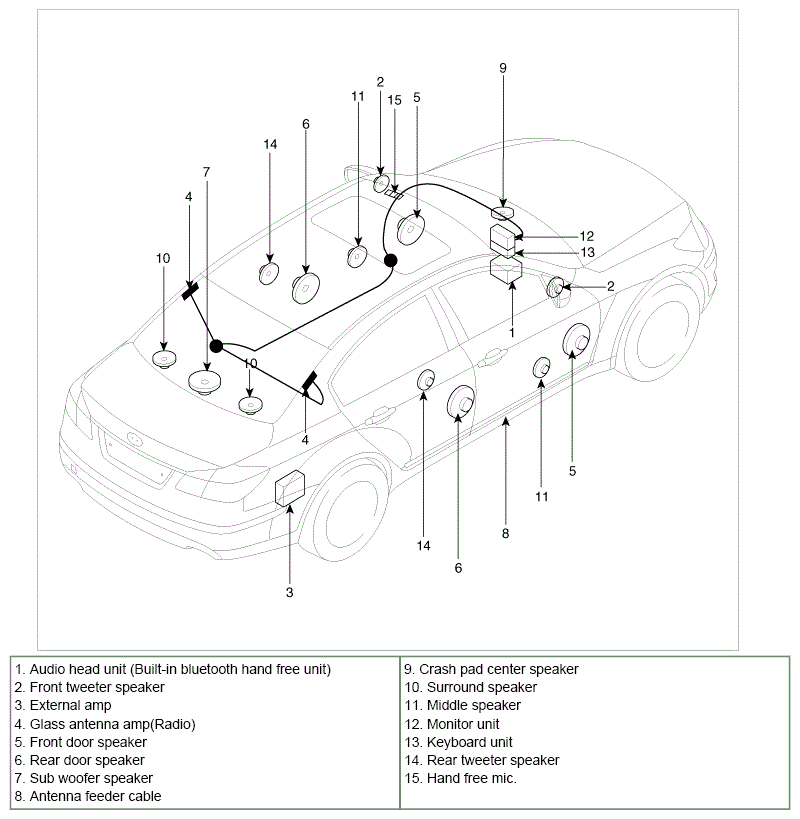

Fig 1: Identifying Audio System Components
G08853179Courtesy of HYUNDAI MOTOR AMERICA
