Components Location

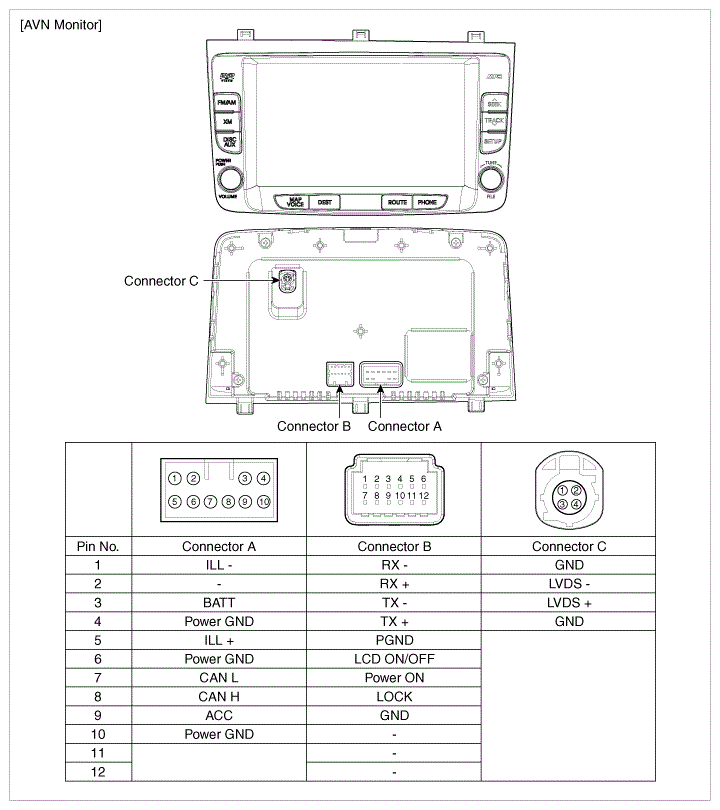

Fig 1: Identifying Front LCD Monitor And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
