Components and Components Location: Components

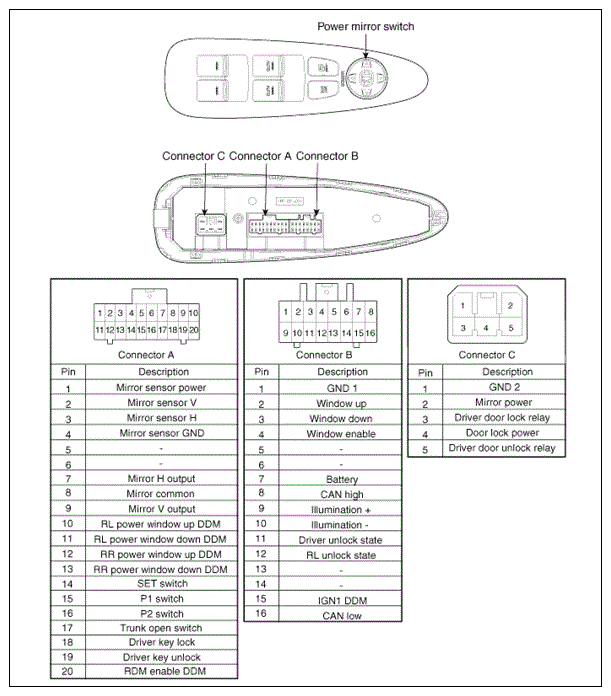

Fig 1: Identifying Power Mirror Switch And Connectors
G08853400Courtesy of HYUNDAI MOTOR AMERICA
