Components and Component Locations: Components

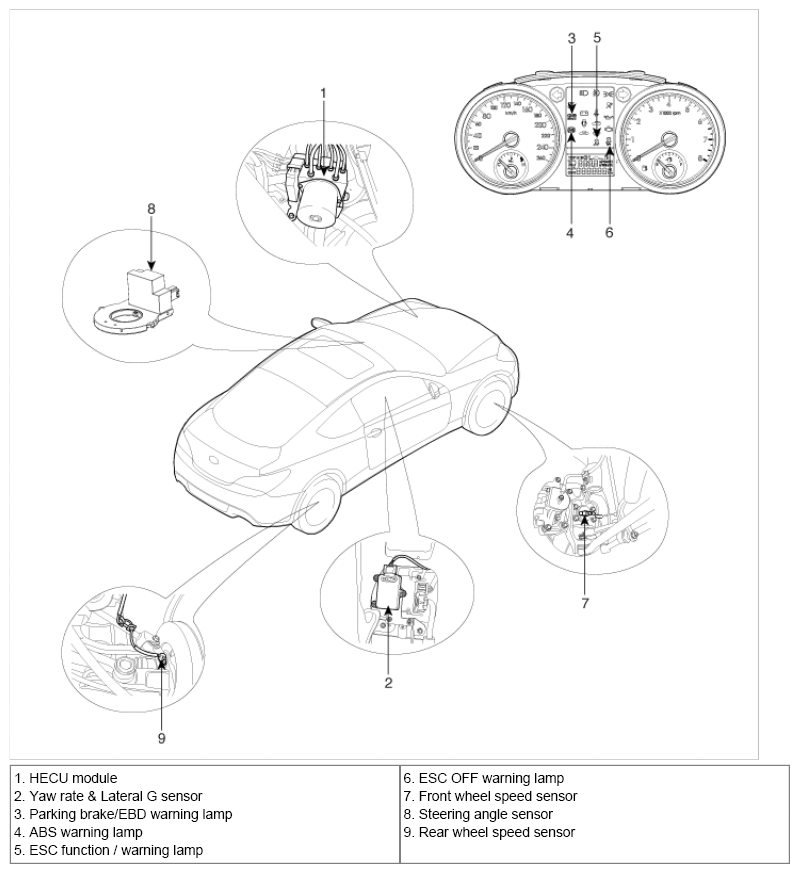

Fig 1: Locating ESC System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
