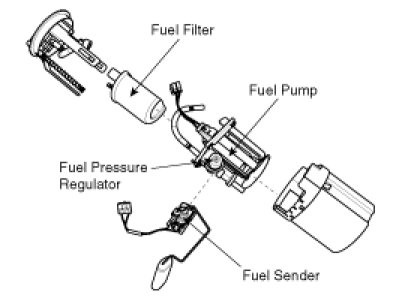

Fuel Filter: Service and Repair

Replacement

1. Remove the fuel pump .

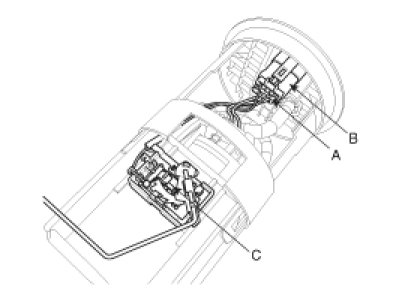

2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).




3. Remove the fuel sender (C).

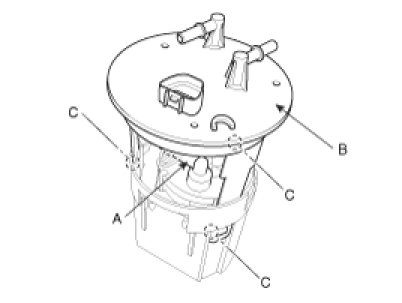

4. Disconnect the fuel feed line (A) from the fuel filter.




5. Separate the head assembly (B) with the hooks (C) released.

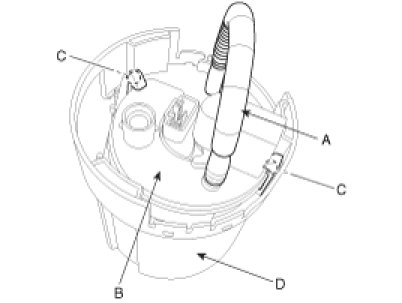

6. Disconnect the regulator hose (A) from the fuel filter (B).




7. Separate the fuel filter (B) from the reservoir (D) with the hooks (C) released.
