Alarm Module: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

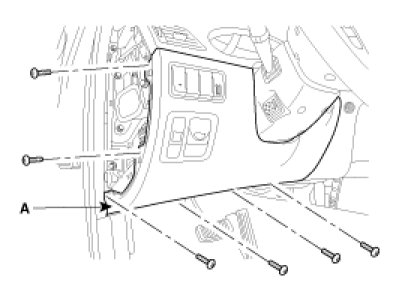

2. Remove the crash pad lower panel (A). .

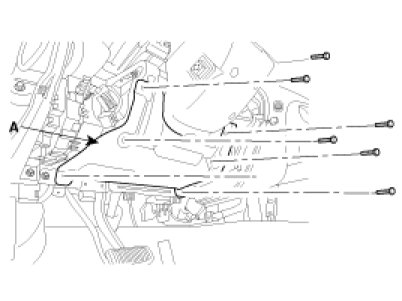

3. Remove the reinforcing panel (A).

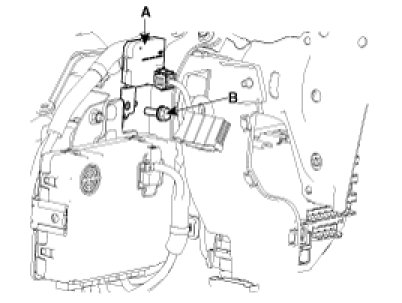

4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut (B).






Installation

1. Install the immobilizer control unit after connecting the unit connector.
2. Install the reforcing panel.
3. Install the crash pad lower panel.
