In-Panel Module (IPM)

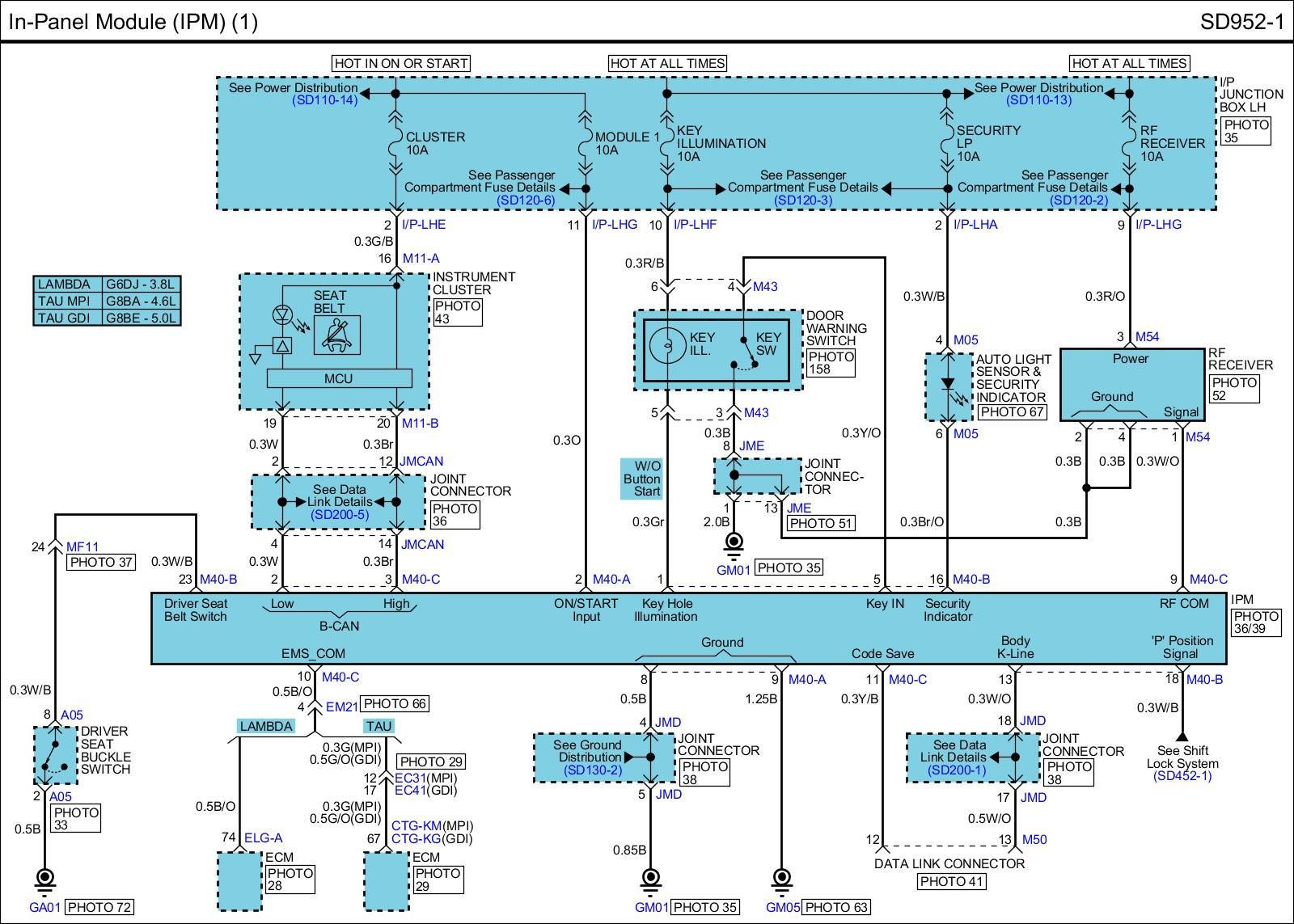

SD952-1 In-Panel Module (IPM) (1):

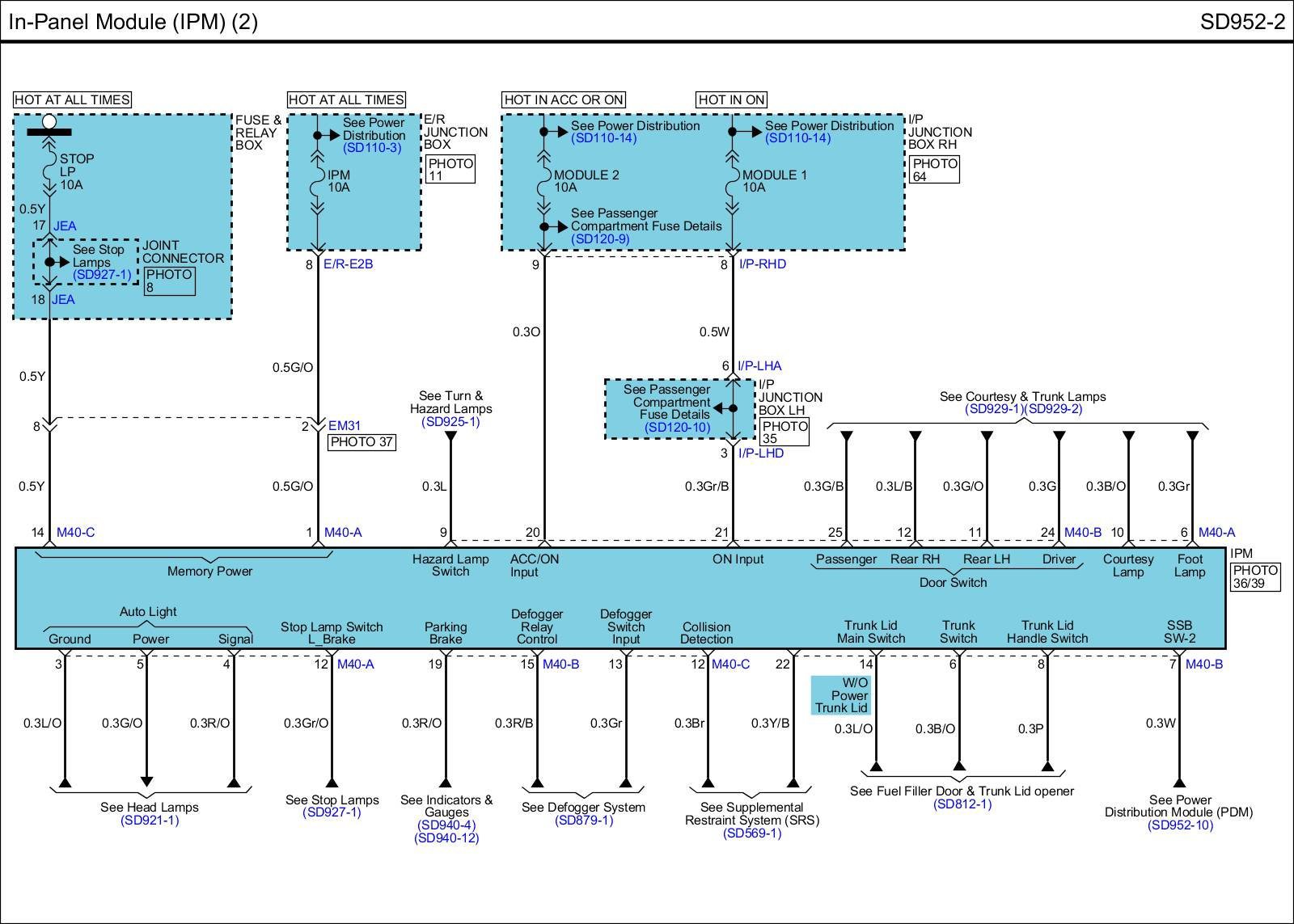

SD952-2 In-Panel Module (IPM) (2):

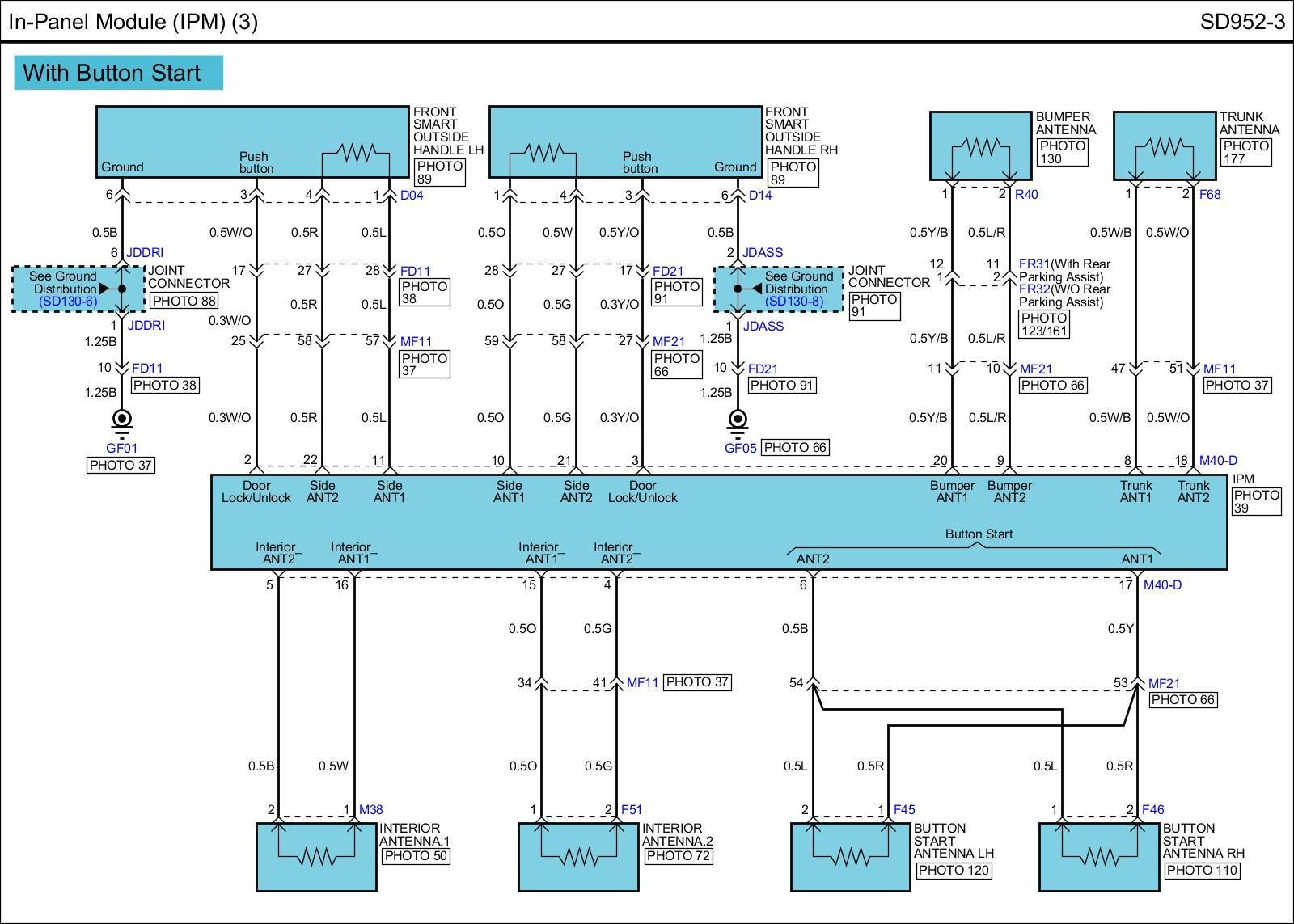

SD952-3 In-Panel Module (IPM) (3):

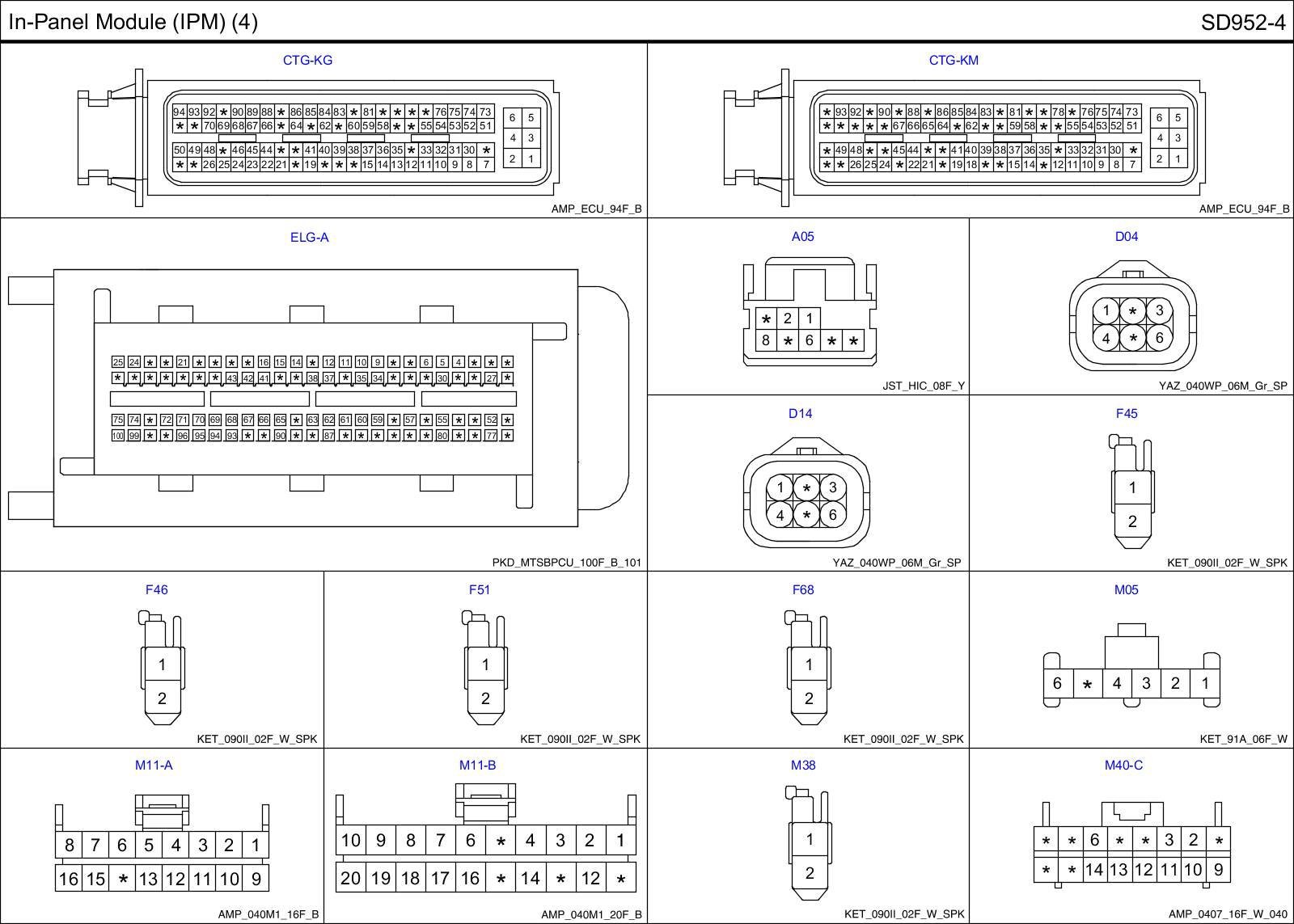

In-Panel Module (IPM) (4) Connector Pin Outs:

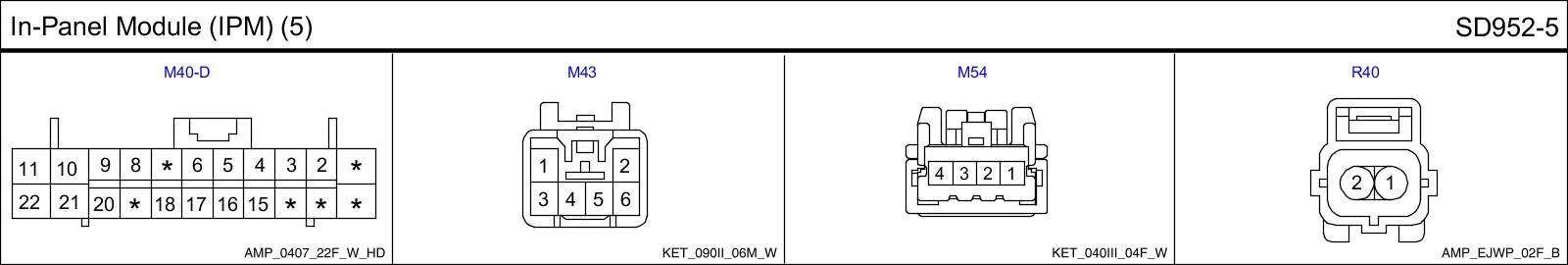

In-Panel Module (IPM) (5) Connector Pin Outs:
