Power Window Switch: Testing and Inspection

Inspection

Driver Power Window Switch

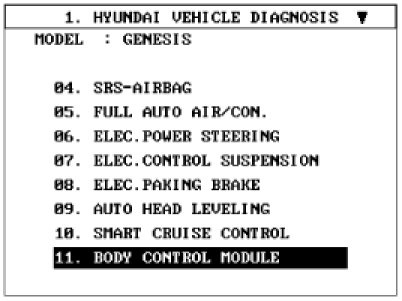

1. When checking the driver power window switch, select a vehicle type and "BODY CONTROL MODULE" menu.

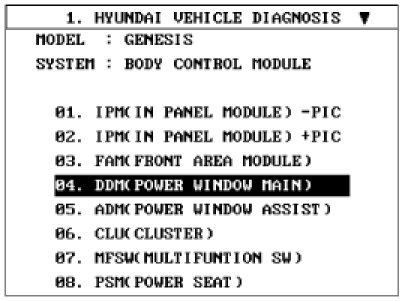

2. Select "DRIVER DOOR MODULE(DDM)".

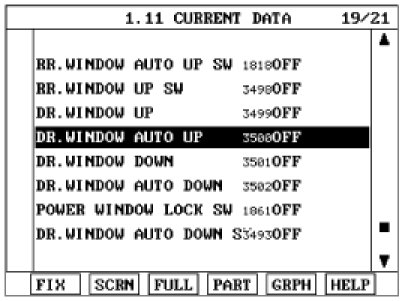

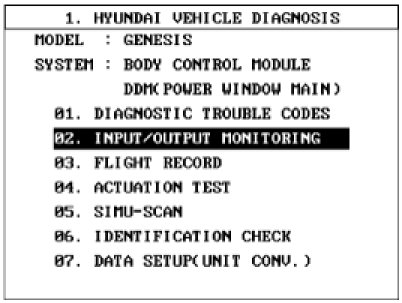

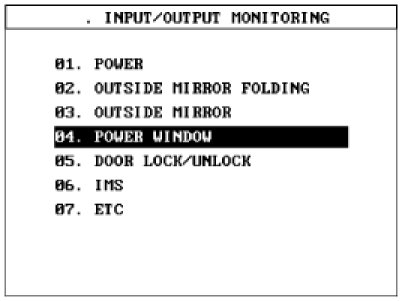

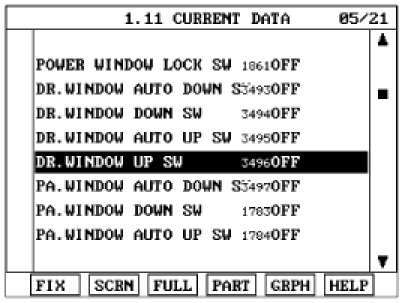

3. Select option "Input/Output monitoring".

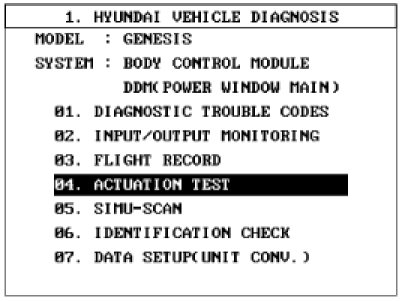

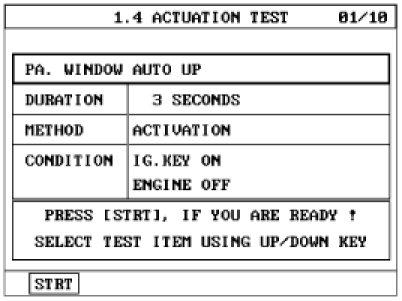

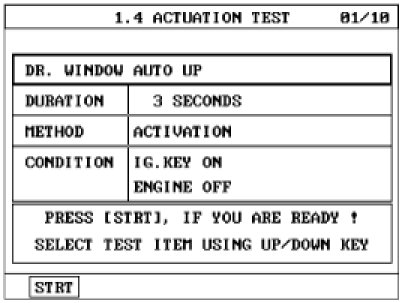

4. To check the input value of power window switch in force mode, select option "ACTUATION TEST".









Assist Power Window Switch

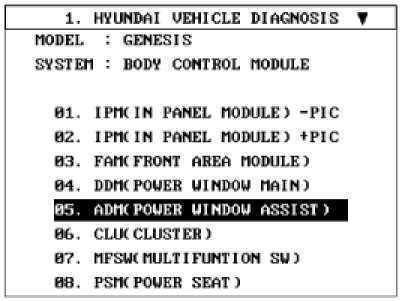

1. When checking the assist power window switch, select a vehicle type and "BODY CONTROL MODULE" menu.




2. Select "ASSIST DOOR MODULE(ADM)".

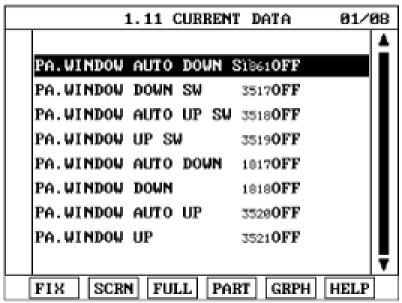

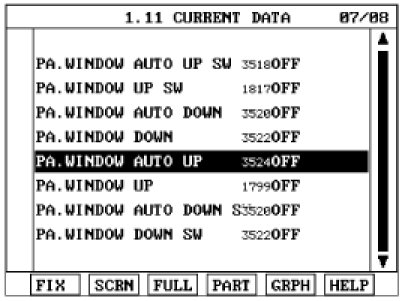

3. Select option "Input/Output monitoring".
















4. To check the input value of power window switch in force mode, select option "ACTUATION TEST".
