Repair Procedures: Replacement

  1. Remove the 4WD ECU (C) after removing the nut (A-2 each) and the connector (B).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

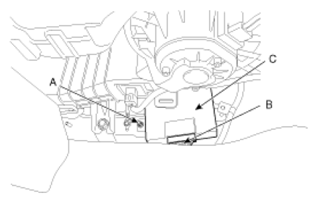

    Fig 1: Identifying 4WD ECU, Connector And Nut
    G06847022Courtesy of HYUNDAI MOTOR AMERICA
