Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

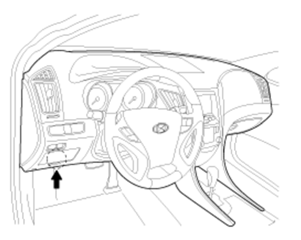

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "Smart key code saving".

Fig 2: Selecting Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

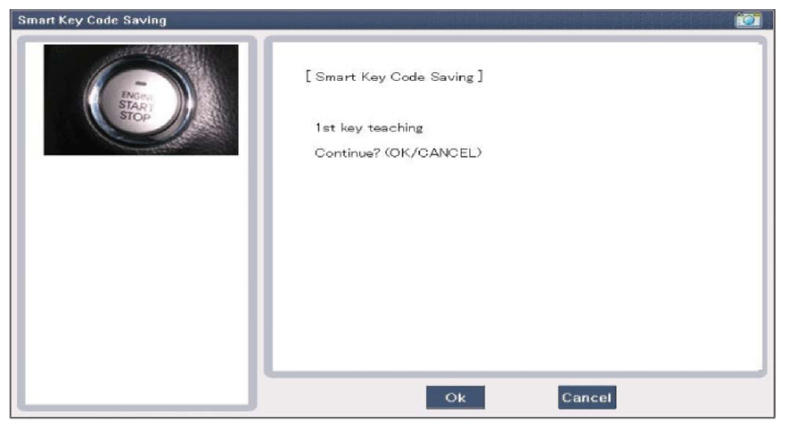

Fig 3: Screen Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

Fig 4: Screen Display - Pin Code (For First Key Teaching)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Screen Display - Pin Code ENTER
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "First key teaching completed".

Fig 6: Screen Display - First Key Teaching
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Screen Display - Smart Key Teaching Complete
Courtesy of HYUNDAI MOTOR CO.
Input the "Pin code" for second key teaching.

Fig 8: Screen Display - Pin Code (For Second Key Teaching)
Courtesy of HYUNDAI MOTOR CO.

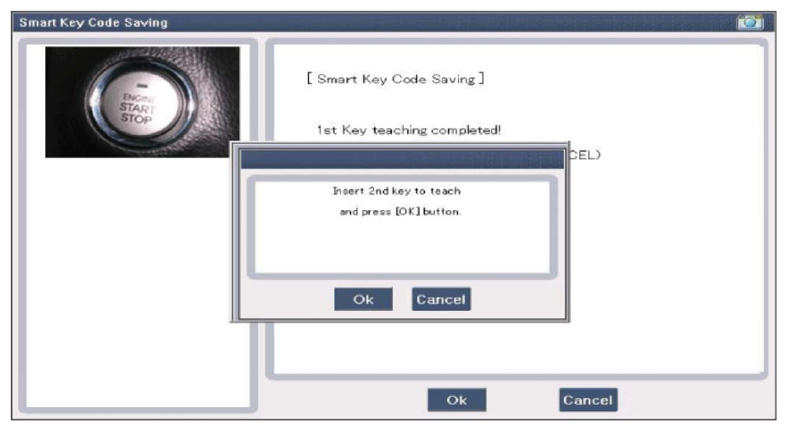

Fig 9: Screen Display - Insert Second Key To Teach
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "Second key teaching completed".

Fig 10: Screen Display - Second Key Teaching Completed
Courtesy of HYUNDAI MOTOR CO.

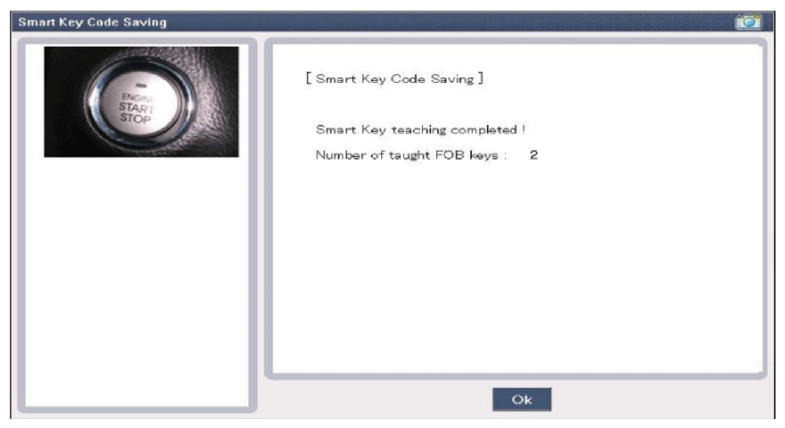

Then the screen will be shown as below when key teaching process is completed.
