Components And Components Location: Component

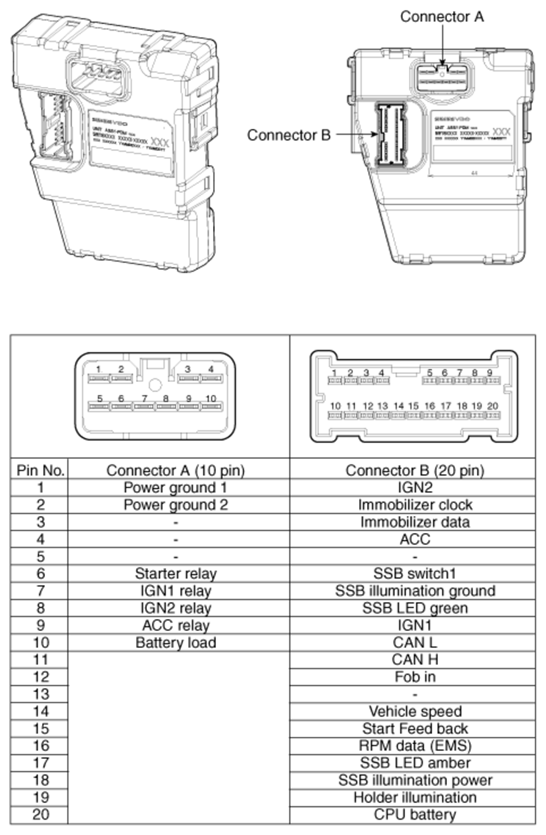

Fig 1: Identifying Power Distribution Module Connector Terminals
G07364787Courtesy of HYUNDAI MOTOR CO.
