ESCL Open Status Check

Select the "ESCL open status check" menu if you want to check ESCL open.

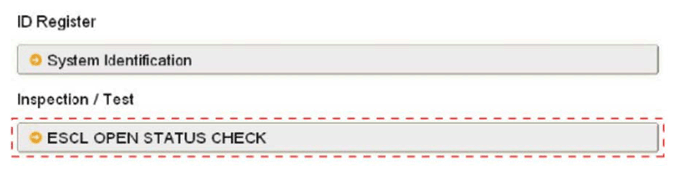

Fig 1: Screen Display - ID Register
Courtesy of HYUNDAI MOTOR CO.

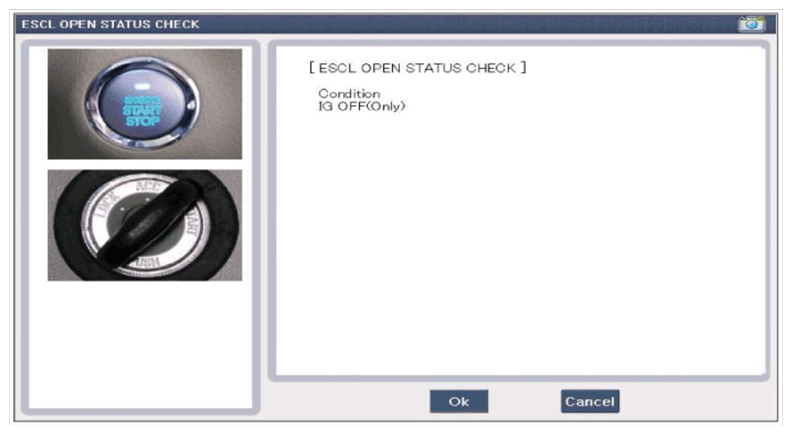

Fig 2: Screen Display - ESCL Open Status Check
Courtesy of HYUNDAI MOTOR CO.

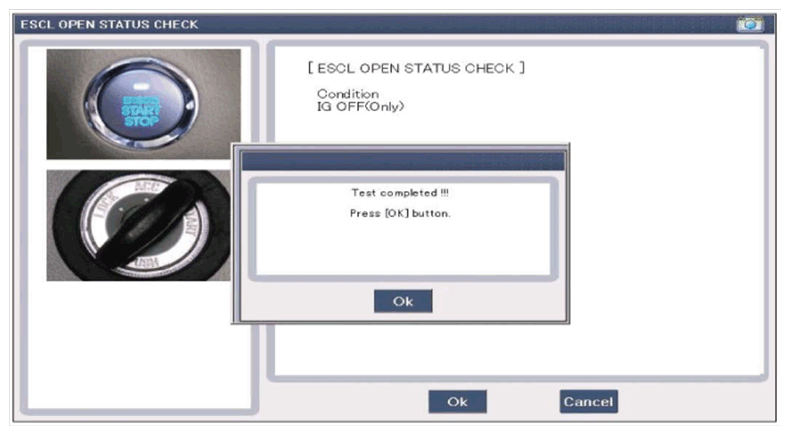

Fig 3: Screen Display - Test Completed
Courtesy of HYUNDAI MOTOR CO.
