Sonata GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System (Except HEV)
>>
Components And Components Location
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

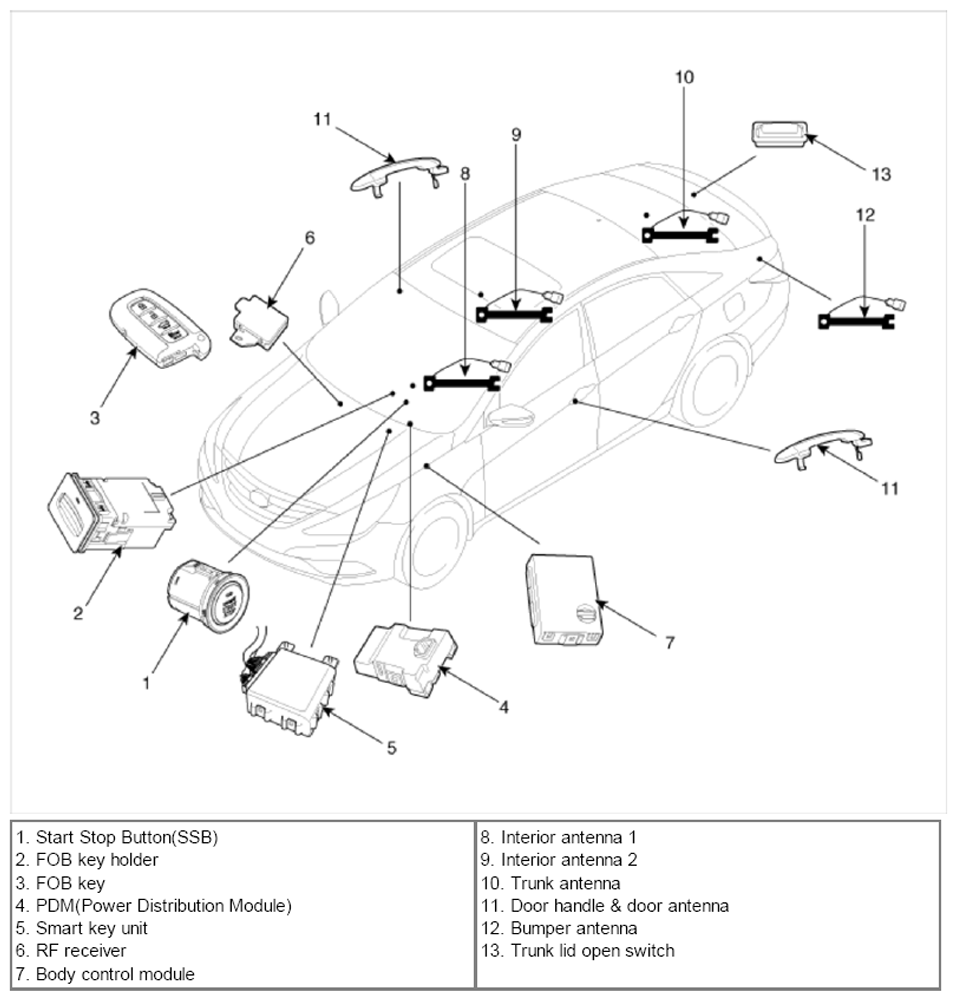

Fig 1: Identifying Button Engine Start System Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
