Components And Components Location: Components

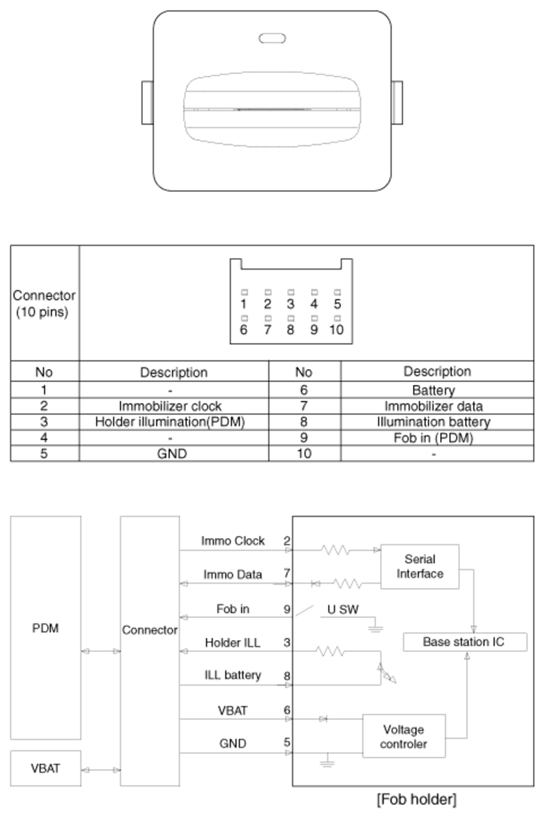

Fig 1: Identifying Fob Holder Connector Terminals

G07364784

Courtesy of HYUNDAI MOTOR CO.
