Hyundai
>>
2012
>>
Sonata GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System (Except HEV)
>>
PDM (Power Distribution Module)
>>
Schematic Diagrams
>>
System Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Circuit Diagram

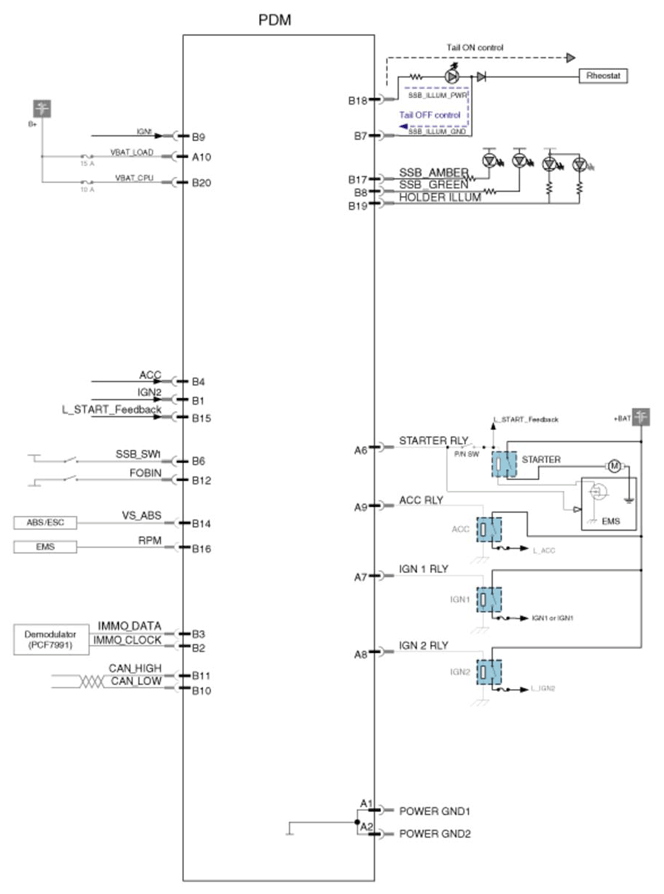

Fig 1: Power Distribution Module System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
