Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to the "CRASH PAD ")

  3. Remove the crash pad center lower cover (A) after loosening the mounting screws.
    Fig 1: Identifying Crash Pad Center Lower Cover With Mounting Screws
    G07364780Courtesy of HYUNDAI MOTOR CO.
  4. Remove the key set bezel (A) after loosening the mounting screw.
    Fig 2: Identifying Key Set Bezel
    G07364781Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the start/stop button connector (A).
    Fig 3: Identifying Start/Stop Button Connector
    G07364782Courtesy of HYUNDAI MOTOR CO.

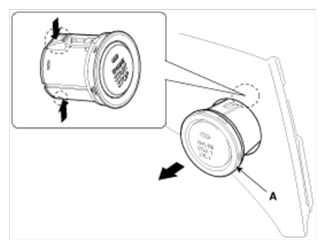

  6. Remove the start/stop button (A) by pushing the both sides of the hooks.
    Fig 4: Removing Start/Stop Button
    G07364783Courtesy of HYUNDAI MOTOR CO.
