Body Control Module





BCM Connector Terminals

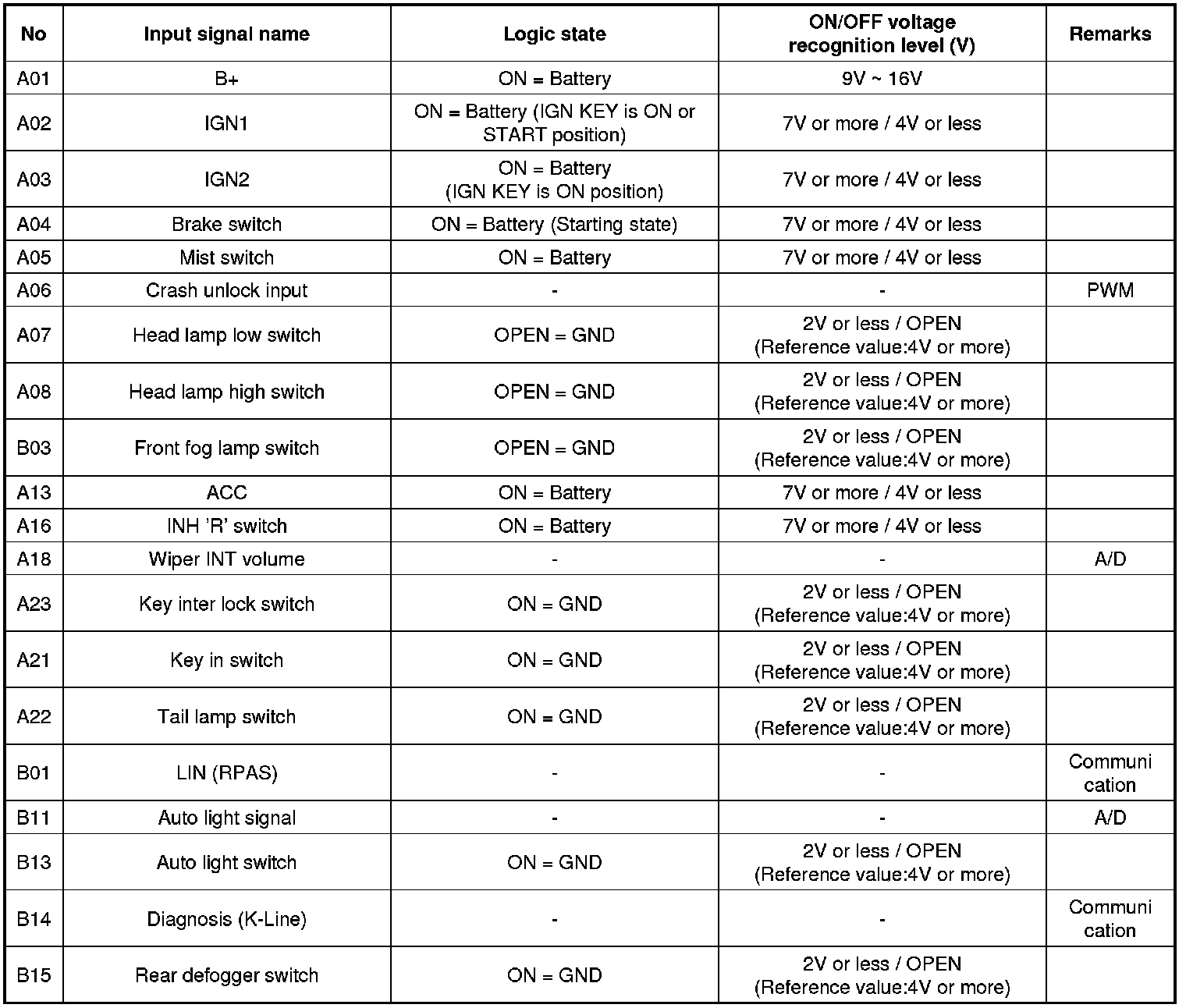

BCM Input Signal SPEC






Pin Arrangement




Connector A





Connector B





Connector C

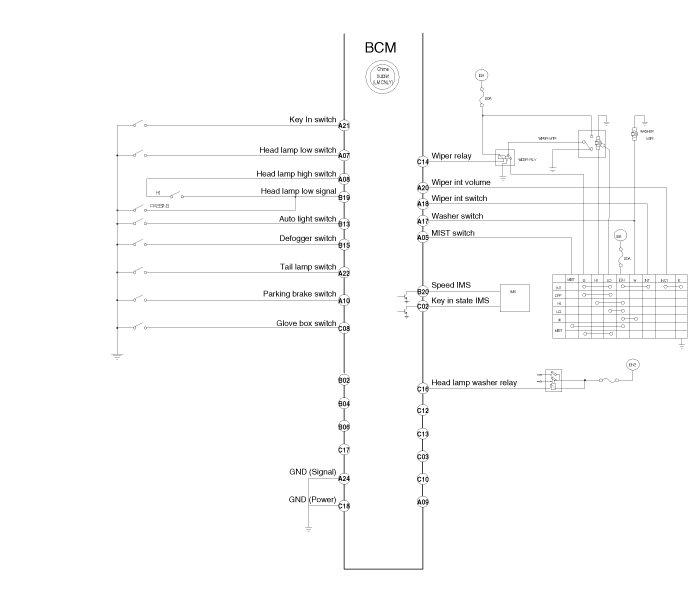

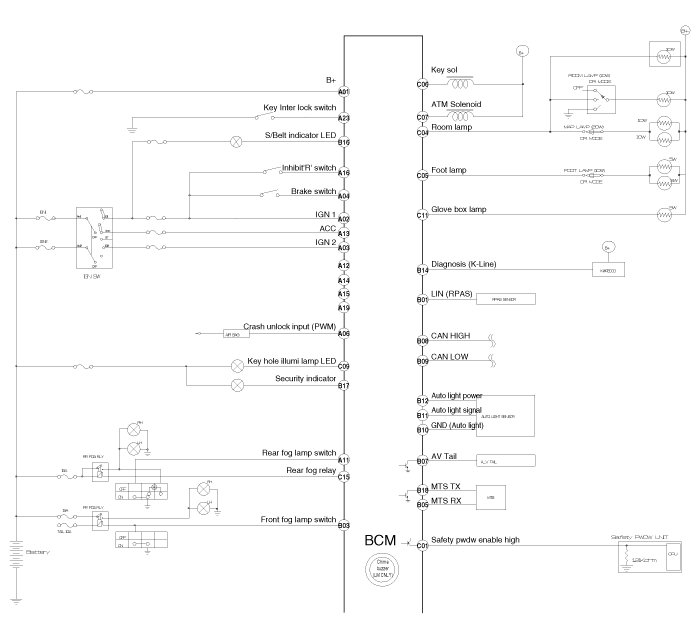

Circuit Diagram
