Hybrid Power Control Module: Description and Operation

















Description

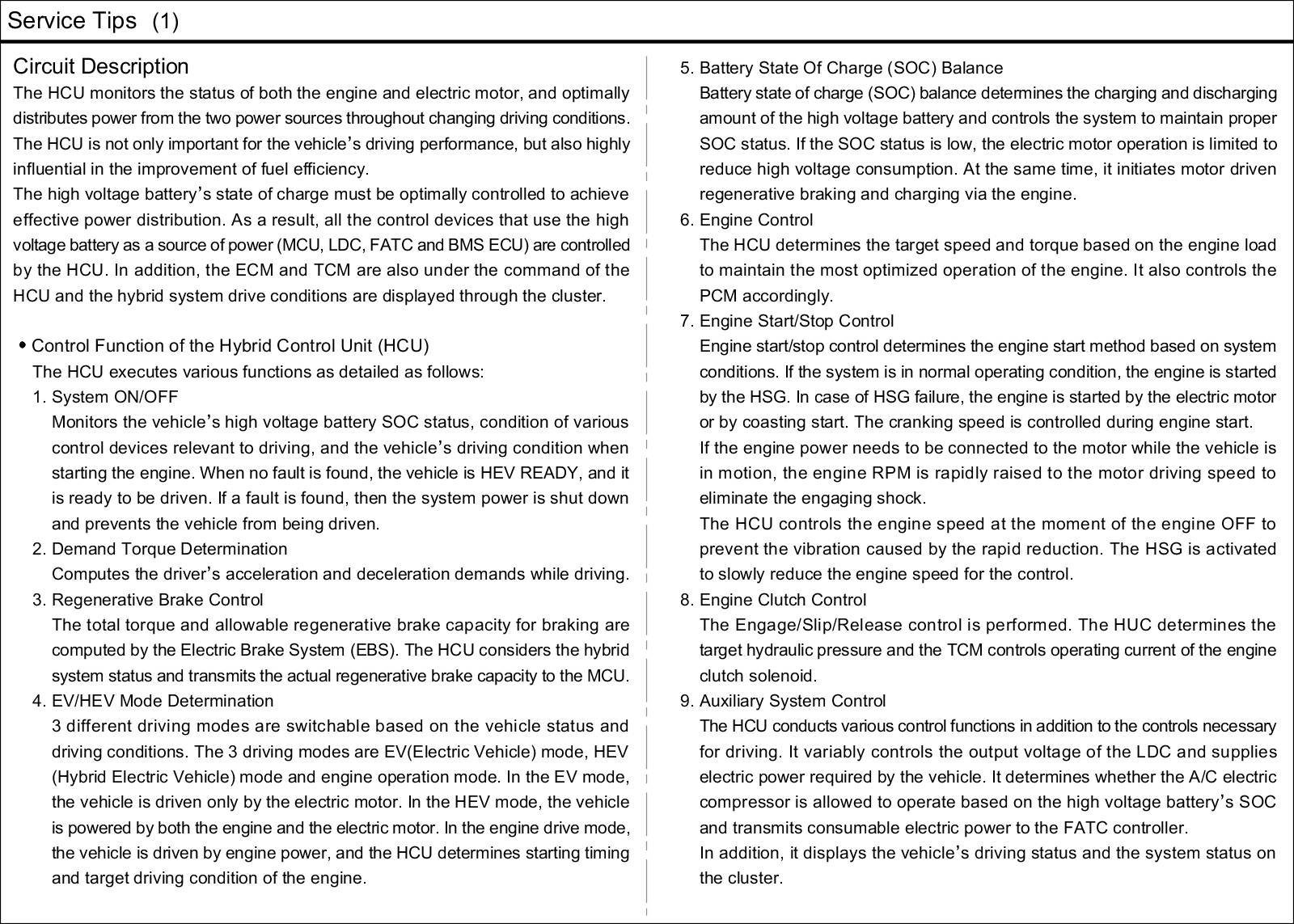

The Hybrid Power Control Unit (HPCU) is an integrated power conversion unit which consists of the two inverters, LDC, and HCU.
