Power Door Lock Switch: Service and Repair

Removal

Driver Power Window Switch
1. Disconnect the negative battery terminal.
2. Remove the front door trim.

3. Remove the screws from power window switch (A) and connectors (B).

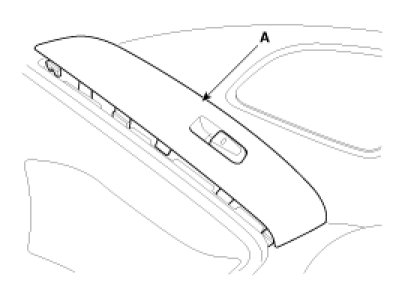

4. Remove the driver power window switch (A) from front door trim.





NOTE:
Be careful not to damage the hook when removing the switch module.

Assist Power Window Switch
1. Disconnect the negative battery terminal.
2. Remove the front door trim.

3. Remove the power window switch (A) from front door trim.




4. Remove the power window switch (A) from front door trim.





NOTE:
Be careful not to damage the hook when removing the switch module.

Installation

Driver Power Window Switch
1. Install the driver door module and connectors.
2. Install the front door trim.

Assist Power Window Switch
1. Install the assist door module and connectors.
2. Install the front door trim.
