Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

3. Remove the cowl cross bar assembly.

4. Remove the heater and blower unit.

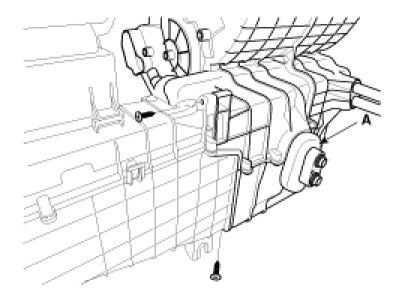

5. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and 3 screws.









NOTE:
Make sure that there is no air leaking out of the blower and duct joints.

6. Installation is the reverse order of removal.
