Fluid - Transfer Case: Testing and Inspection

Inspection

Transfer Oil Inspection

Transfer oil should be inspected and refilled every 30 months or 37,500 miles.

Tightening torque

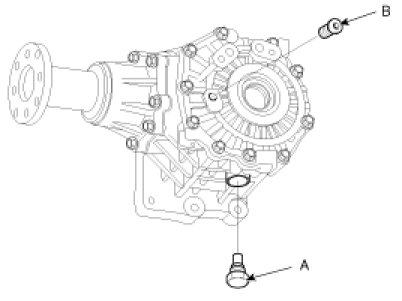

Oil drain plug(A) :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)
Filler plug(B) :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)
