Front Door Window Motor: Service and Repair

Power Window Motor Replacement

1. Remove the door trim.
2. Remove the door screen.

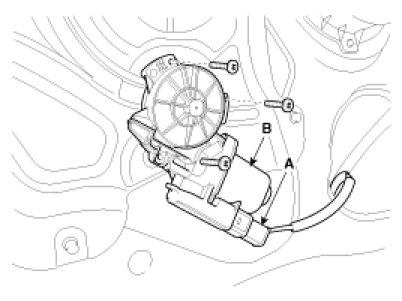

3. Disconnect the connector (A), then loosen the mounting screws.
4. Remove the power window motor (B).




5. Installation is the reverse of removal.

NOTE:
- Grease should be applied to areas where there is rotational parts and springs.
- Roll the glass up and down to see if it move freely without binding.
- Replace ant damaged clips.
- Make sure the door locks/unlocks and opens/closes properly.
