Components and Components Location: Components

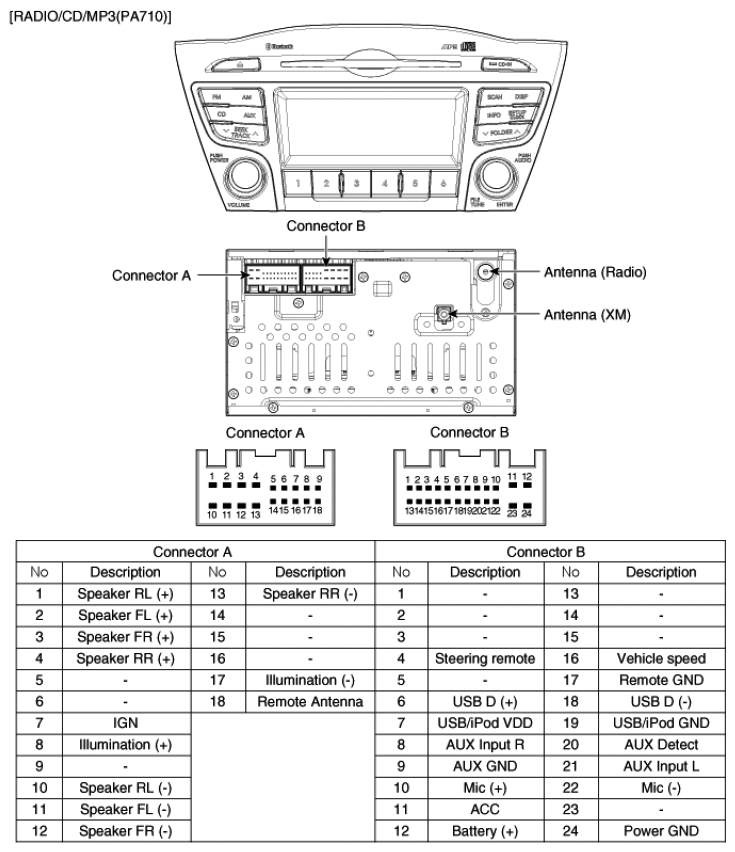

Fig 1: Identifying Audio Unit Components - RADIO/CD/MP3(PA710)
G06873464Courtesy of HYUNDAI MOTOR CO.

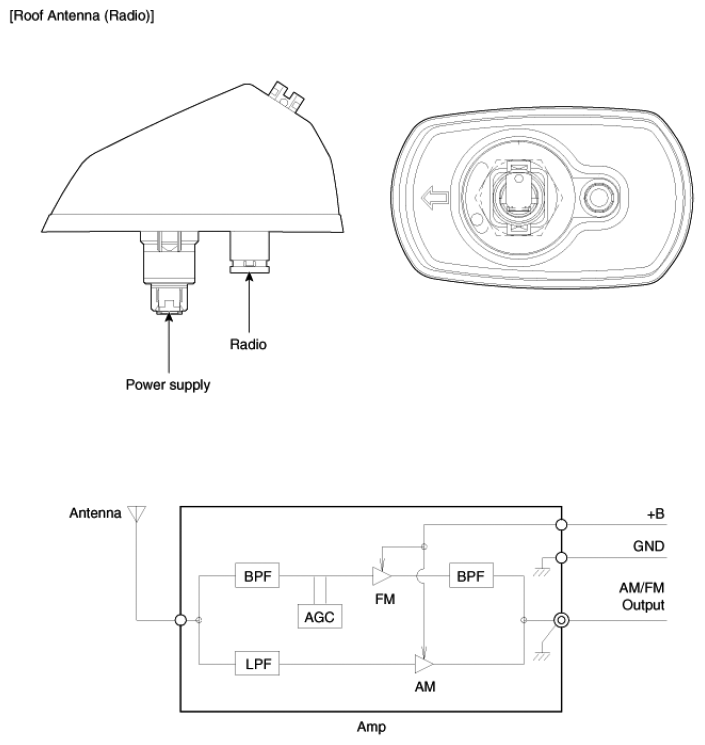

Fig 2: Identifying Audio Unit Components - Roof Antenna (Radio)
G06873465Courtesy of HYUNDAI MOTOR CO.

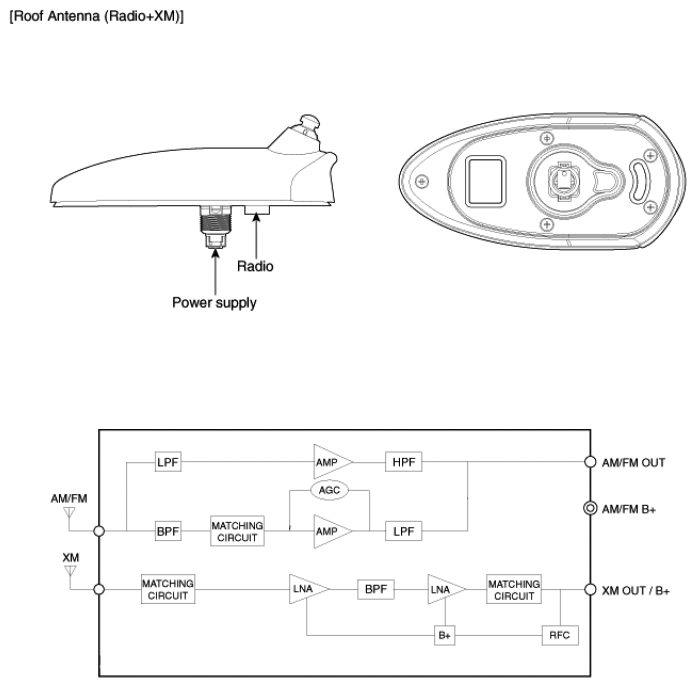

Fig 3: Identifying Audio Unit Components - Roof Antenna (Radio+XM)
G06873466Courtesy of HYUNDAI MOTOR CO.
