Components Location

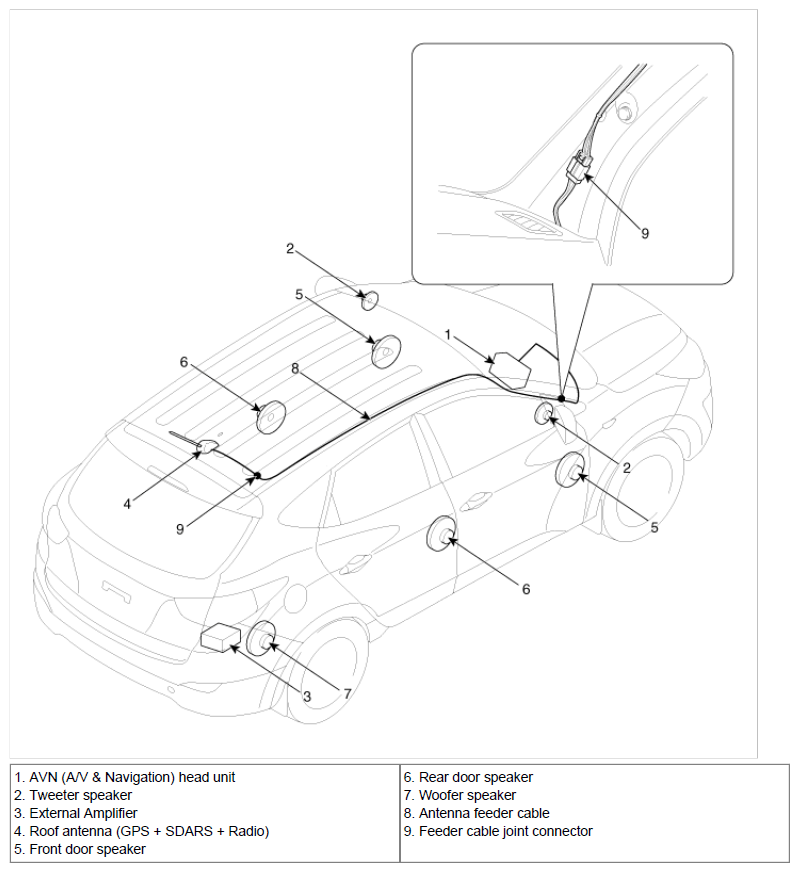

Fig 1: Identifying AVN System Components
G06873520Courtesy of HYUNDAI MOTOR CO.

*SDARS: Satellite Digital Audio Radio Service
