Projected Dimensions

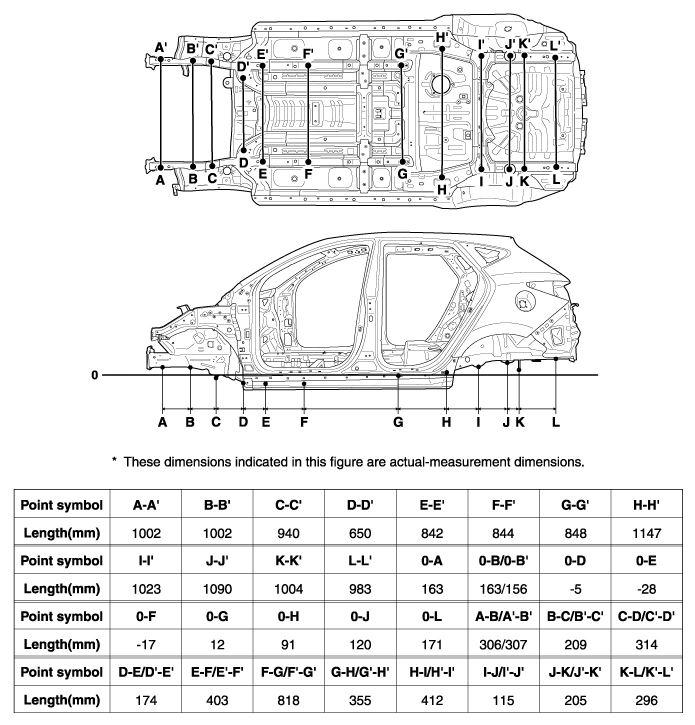

Fig 1: Identifying Under Body - Projected Dimensions (1 Of 2)
G06874612Courtesy of HYUNDAI MOTOR CO.

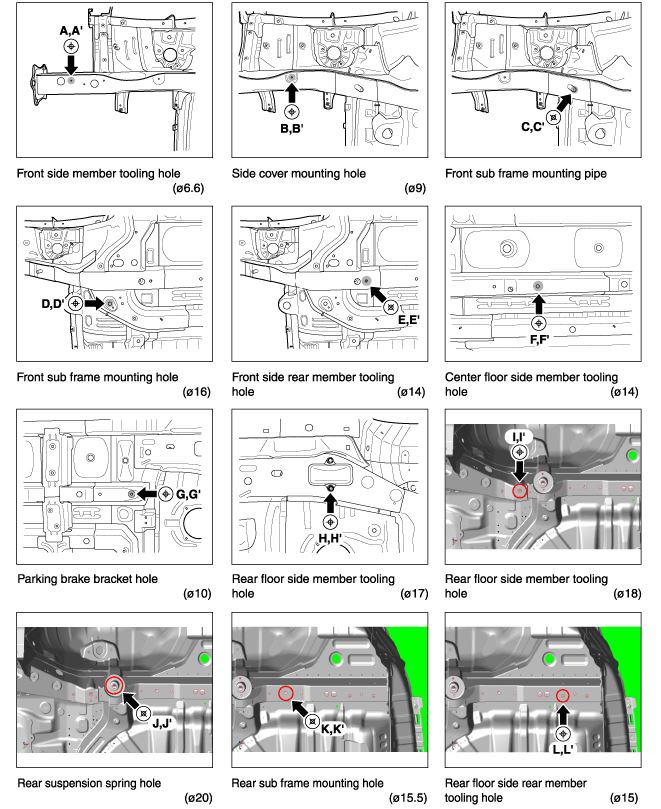

Fig 2: Identifying Under Body - Projected Dimensions (2 Of 2)
G06874613Courtesy of HYUNDAI MOTOR CO.
