Engine Control System Diagnosis (1 Of 3)
>>
DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

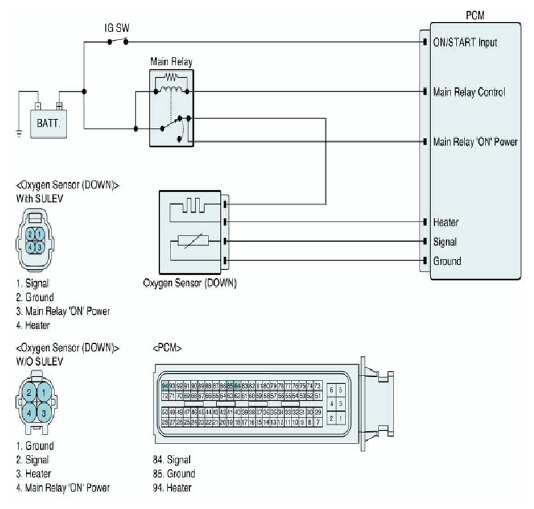

Fig 1: Oxygen Sensor (Bank 1/Sensor 2) Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
