Signal Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between signal terminal of HO2S (B1S2) harness connector and chassis ground.
Specification: Approx. 0.4~0.5 V

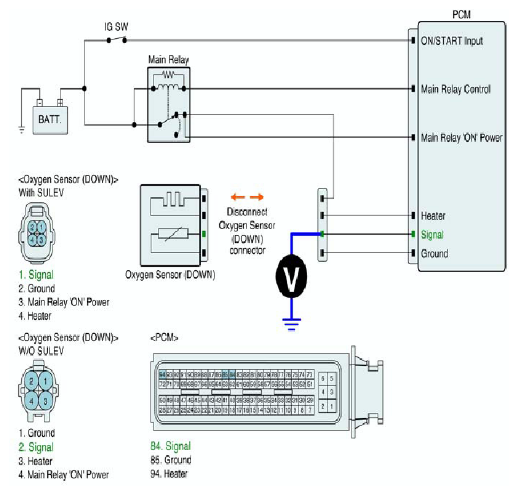

Fig 1: Measuring Voltage Between Signal Terminal Of HO2S (B1S2) Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES
- Go to next step as below.
NO
- Repair or replace as necessary and go to VERIFICATION OF VEHICLE REPAIR .
  NOTE: HO2S must have a clean air reference to function properly. The air is obtained by way of the sensor wire (s). Do not attempt to repair the wire (s), connector, or the terminals.
