Diagnostic Circuit Diagram

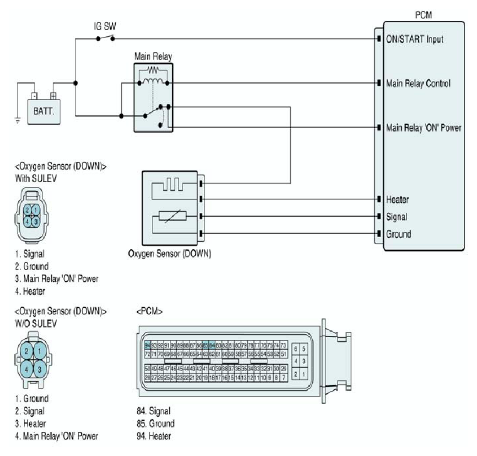

Fig 1: Oxygen Sensor (Bank 1/Sensor 2) Circuit Diagram
G06871612Courtesy of HYUNDAI MOTOR CO.
