Pressure Sensor Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

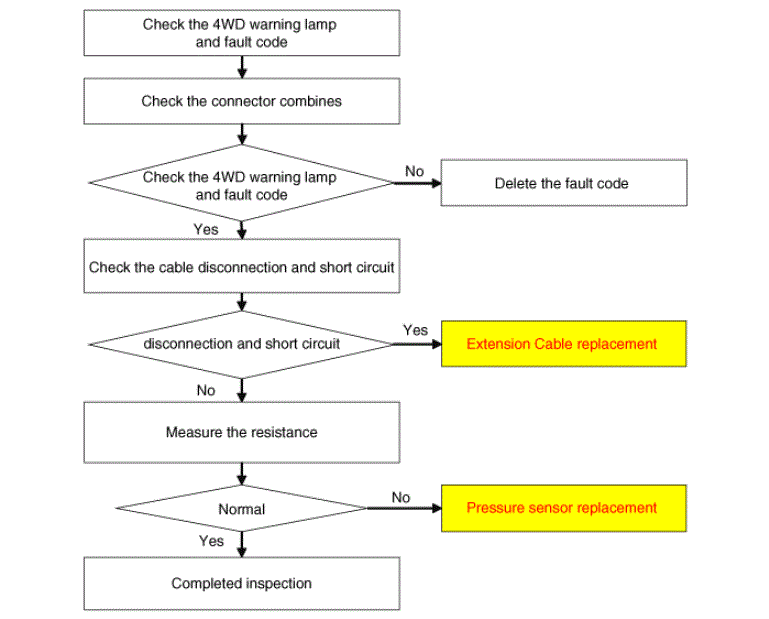

Fig 1: Identifying Pressure Sensor Inspection Diagram
G00534783Courtesy of KIA MOTORS AMERICA, INC.
